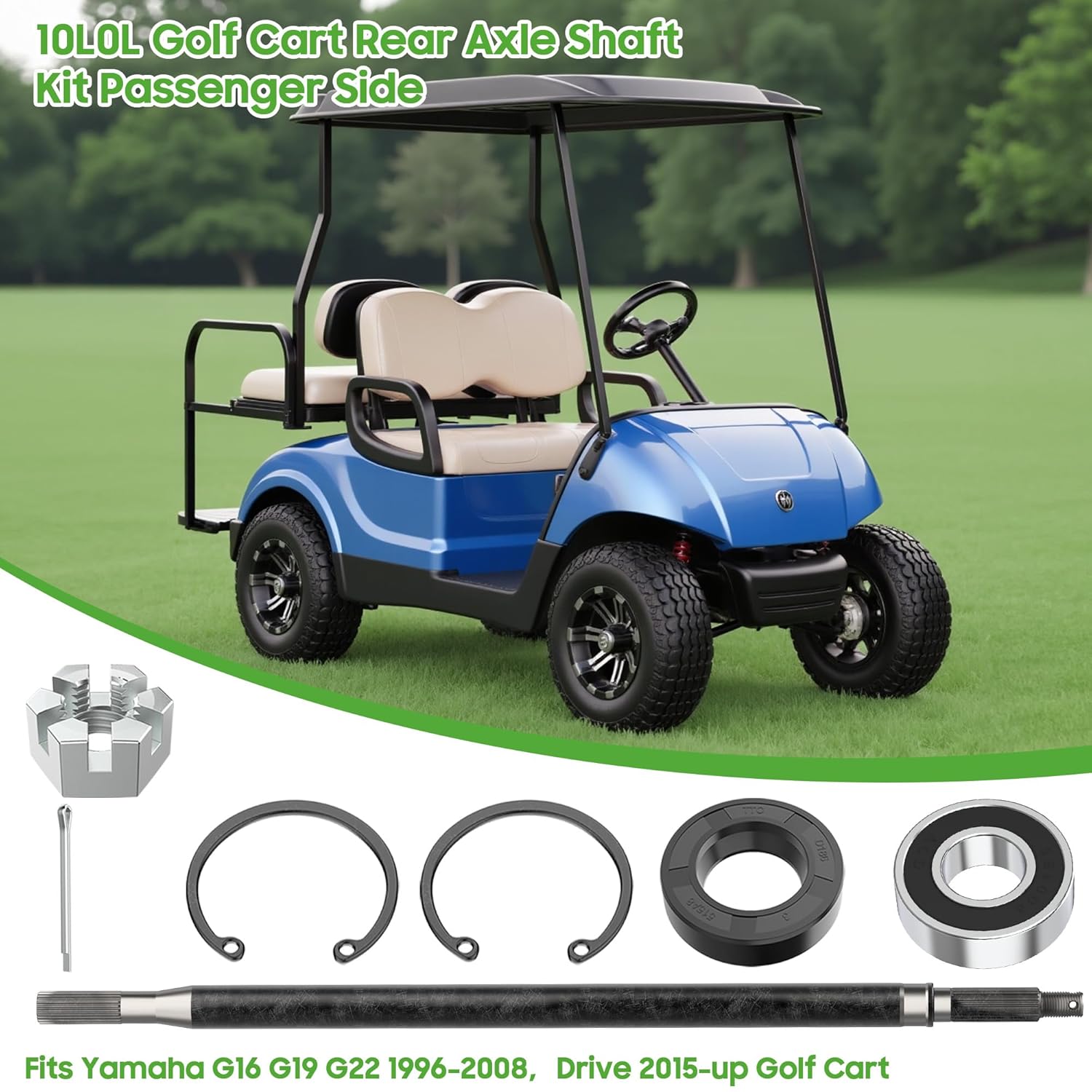

10L0L Golf Cart Rear Axle Shaft with Bearing Seal Kit – Passenger Side for Yamaha G16/G19/G22/Drive

Restore Your Golf Cart's Rear Axle Assembly

This complete passenger side axle solution provides everything needed to rebuild your Yamaha's rear end, including axle shaft, bearings, seals, and hardware for 1996-2008 G16/G19/G22 and 2015-Up Drive models.

Kit Specifications

✔ Precision Fit for Yamaha Models
• G16, G19, G22 (1996-2008)
• Drive (2015-Up)
• Passenger Side Only

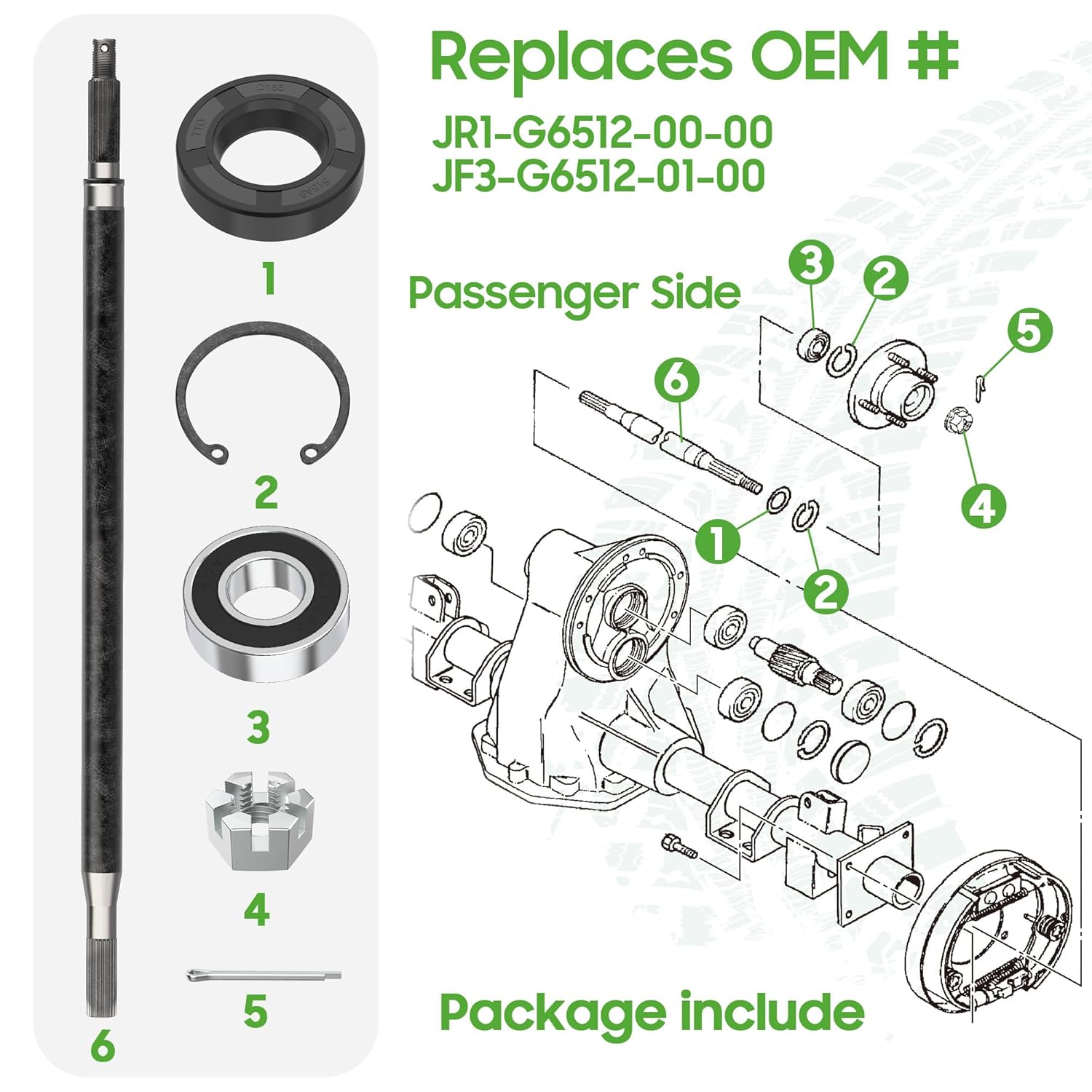

✔ Complete OEM Replacement
• Axle Shaft replaces: JR1-G6512-00-00
• Bearing/Seal Kit replaces:

• 2 x Circlip (93420-44805-00)

• 1 x Bearing (93306-004X5-00)

• 1 x Oil Seal (93101-24822-00)

• 1 x Nut (90185-16833-00)

✔ Premium Construction

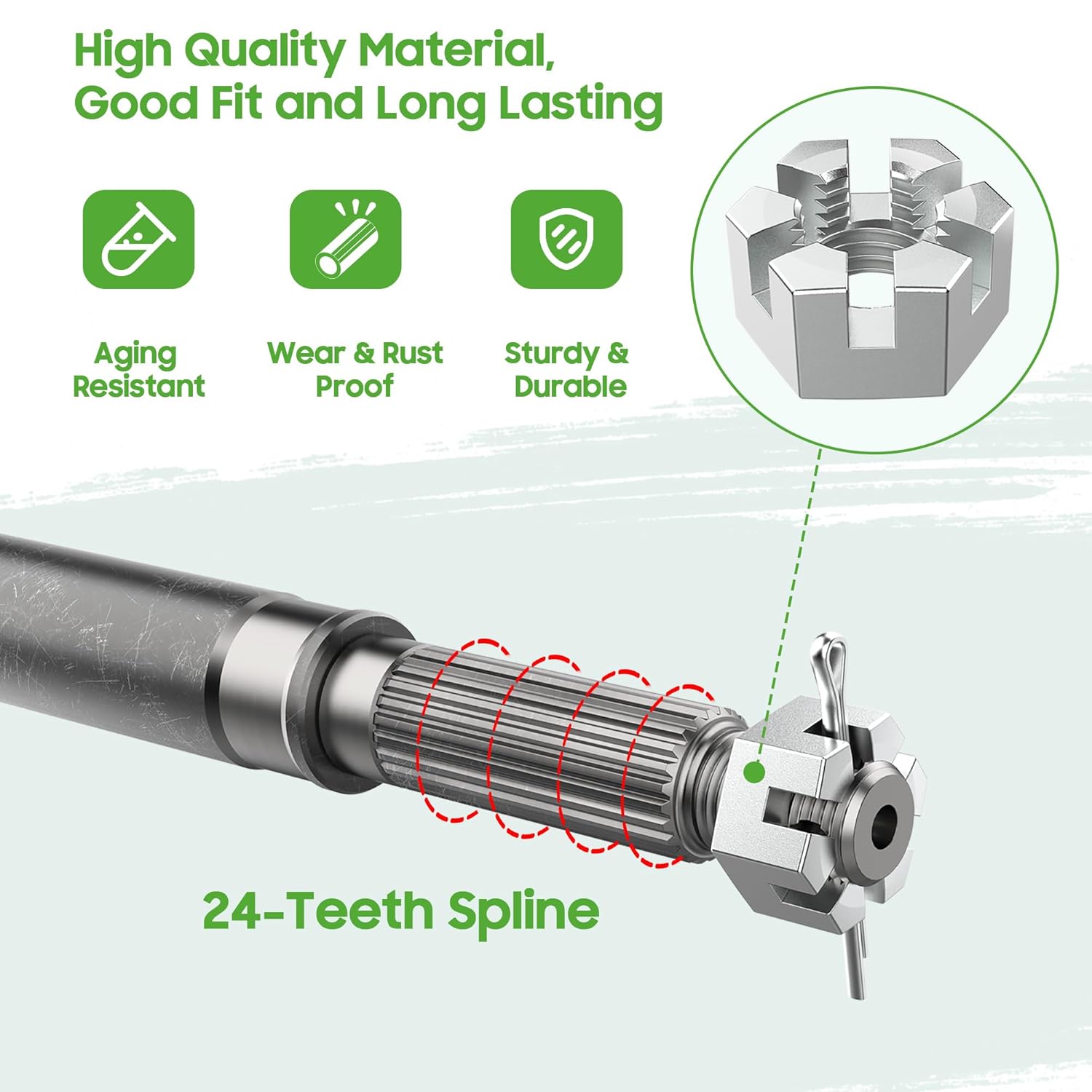

• Case-hardened axle splines
• Japanese-grade bearings
• Double-lipped oil seals

Critical Installation Note

⚠ Must Check: After installation, rotate by hand to verify:
• No gap between brake hub and axle shaft
• Smooth rotation without binding
• If play exists, replace both axle and hub to prevent spline damage

When to Replace Your Axle

• Stripped/worn splines
• Bearing noise or failure
• Oil leaks at seal
• Excessive wheel play

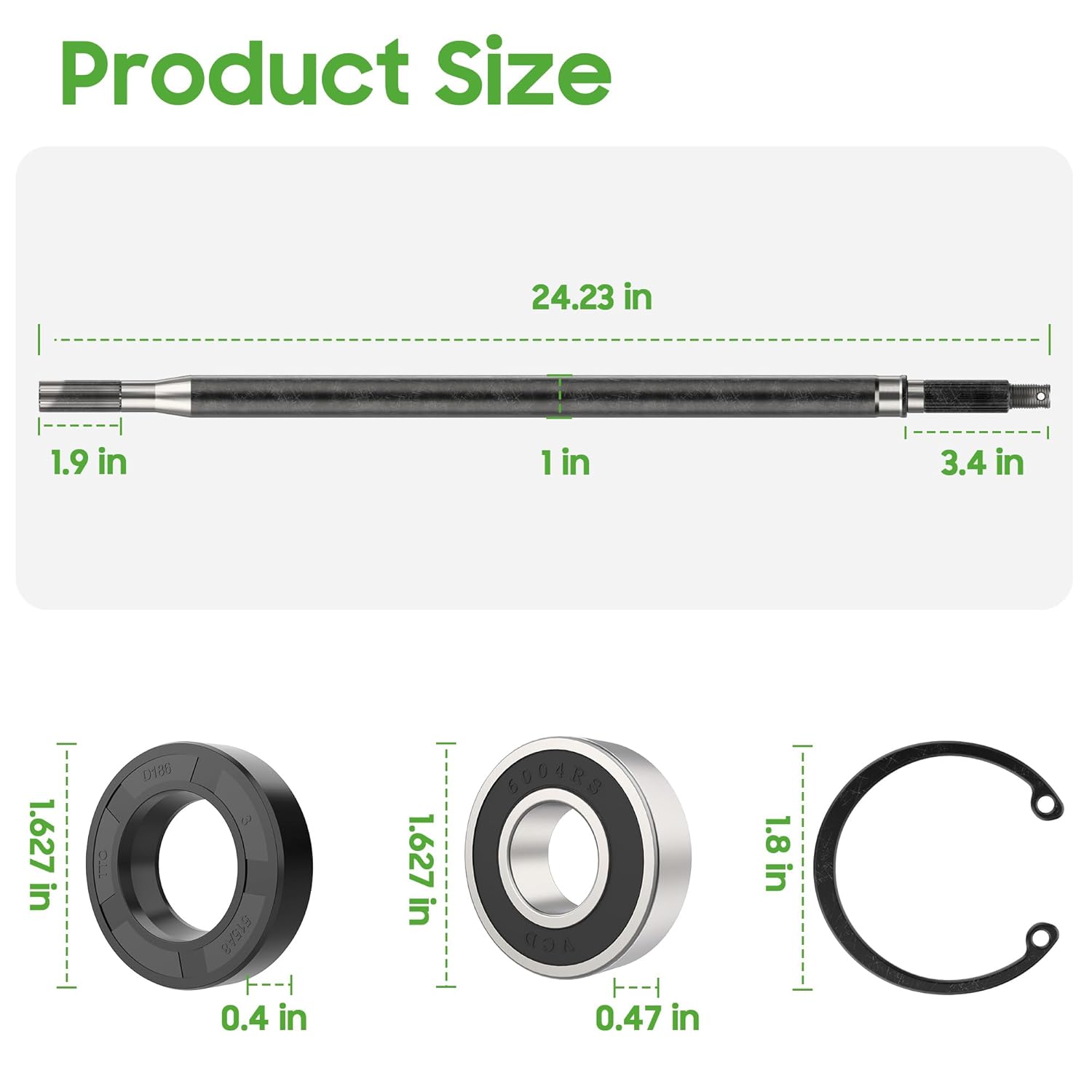

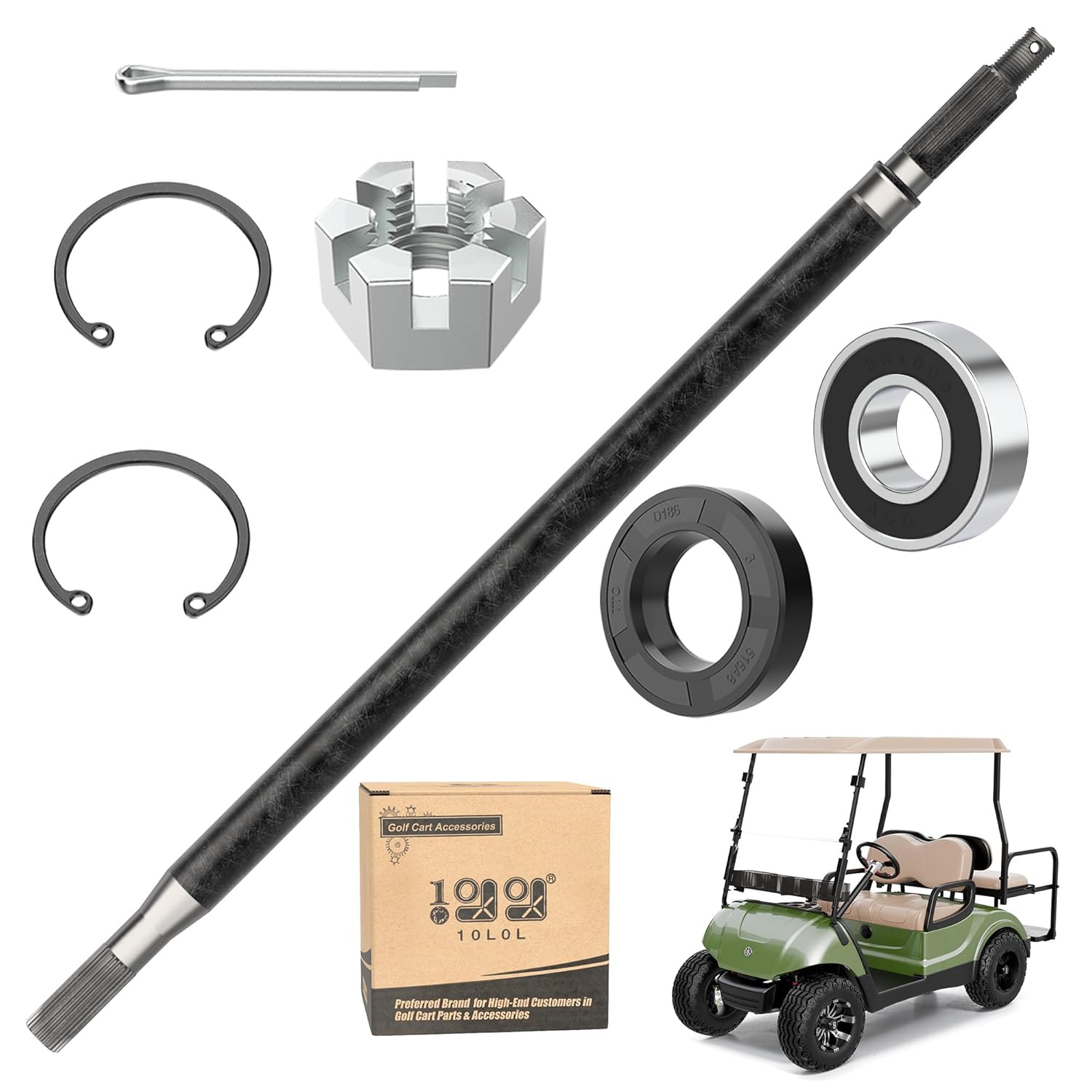

What's Included

• 1 x Passenger Side Axle Shaft
• 1 x High-Capacity Bearing
• 2 x Circlips
• 1 x Oil Seal
• 1 x Axle Nut
• Installation Guide

Why Choose 10L0L?

• Laser-measured spline tolerances (±0.001")
• Pre-greased bearings
• US-based technical support

🔧 Pro Tip: Replace brake hub if splines show any wear
