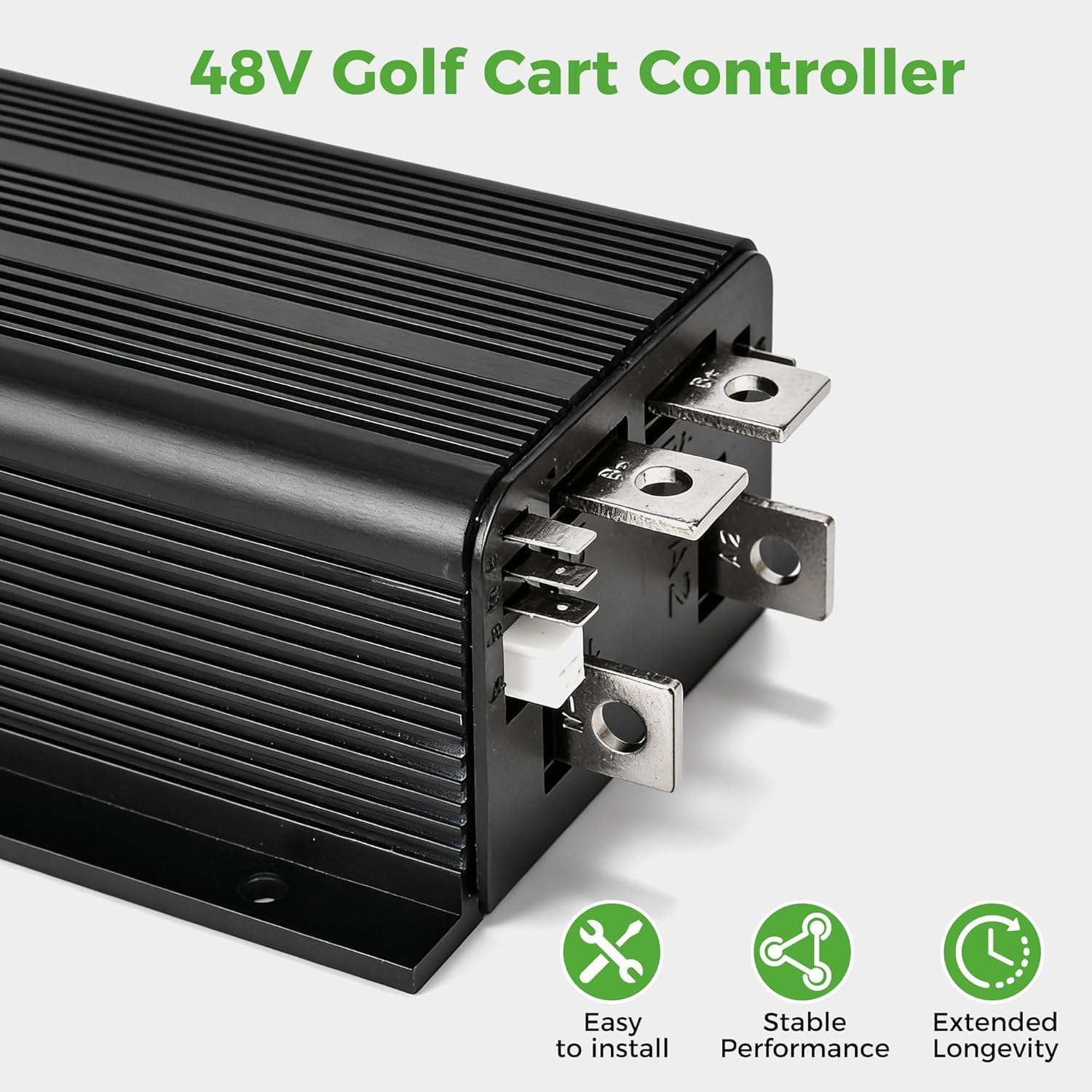

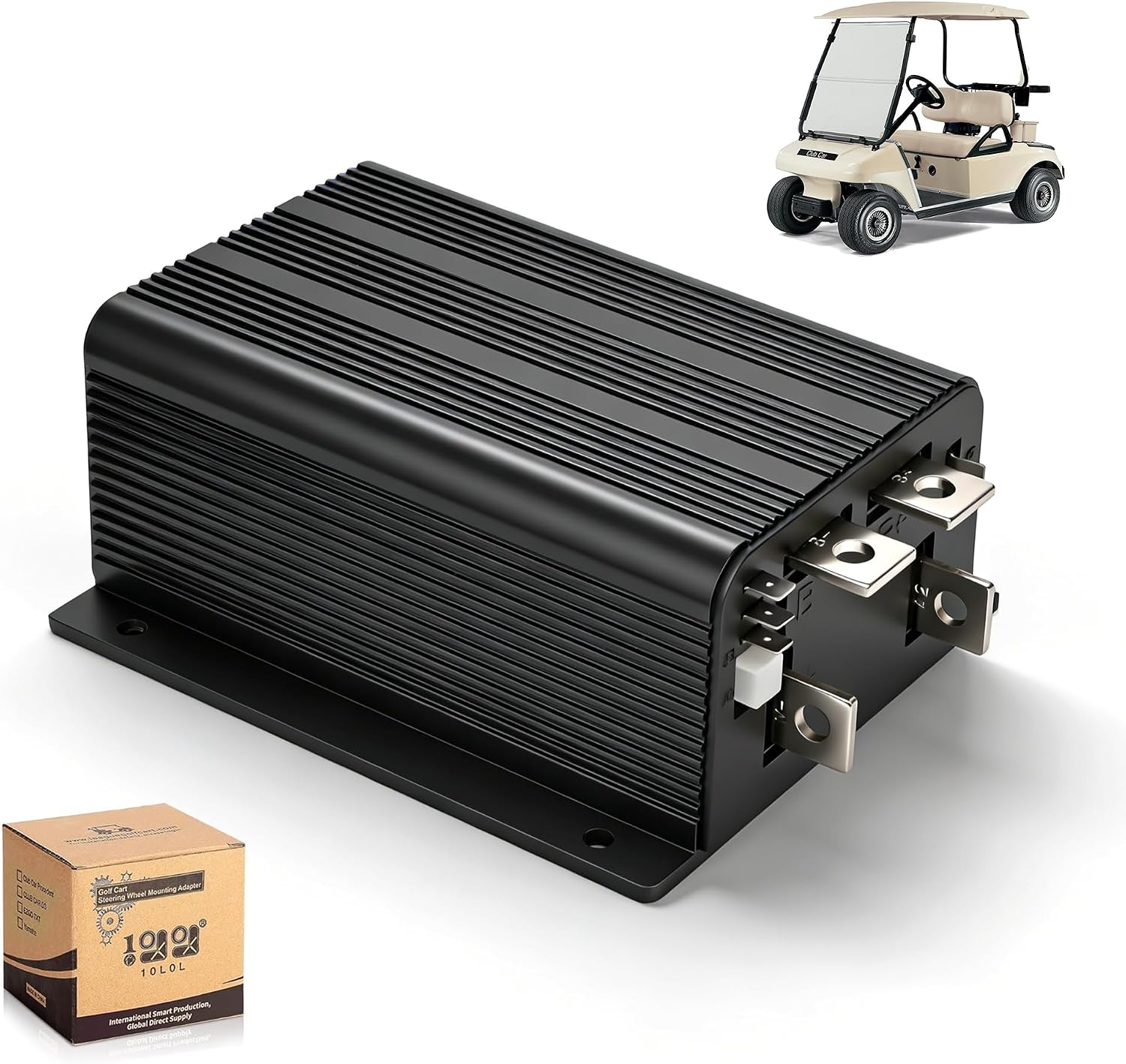

10L0L 48V 325A Golf Cart Speed Controller for Club Car DS 1996-Up

Restore responsive motor control in your golf cart with the 10L0L 48V 325A Golf Cart Speed Controller. Designed primarily for Club Car DS golf carts manufactured from 1996 onward, this replacement controller features a default 48V configuration, a 325A peak current rating, and a 5kΩ–0Ω inductive throttle input. It is designed for compatible 48V electrical systems that match the original controller's specifications.

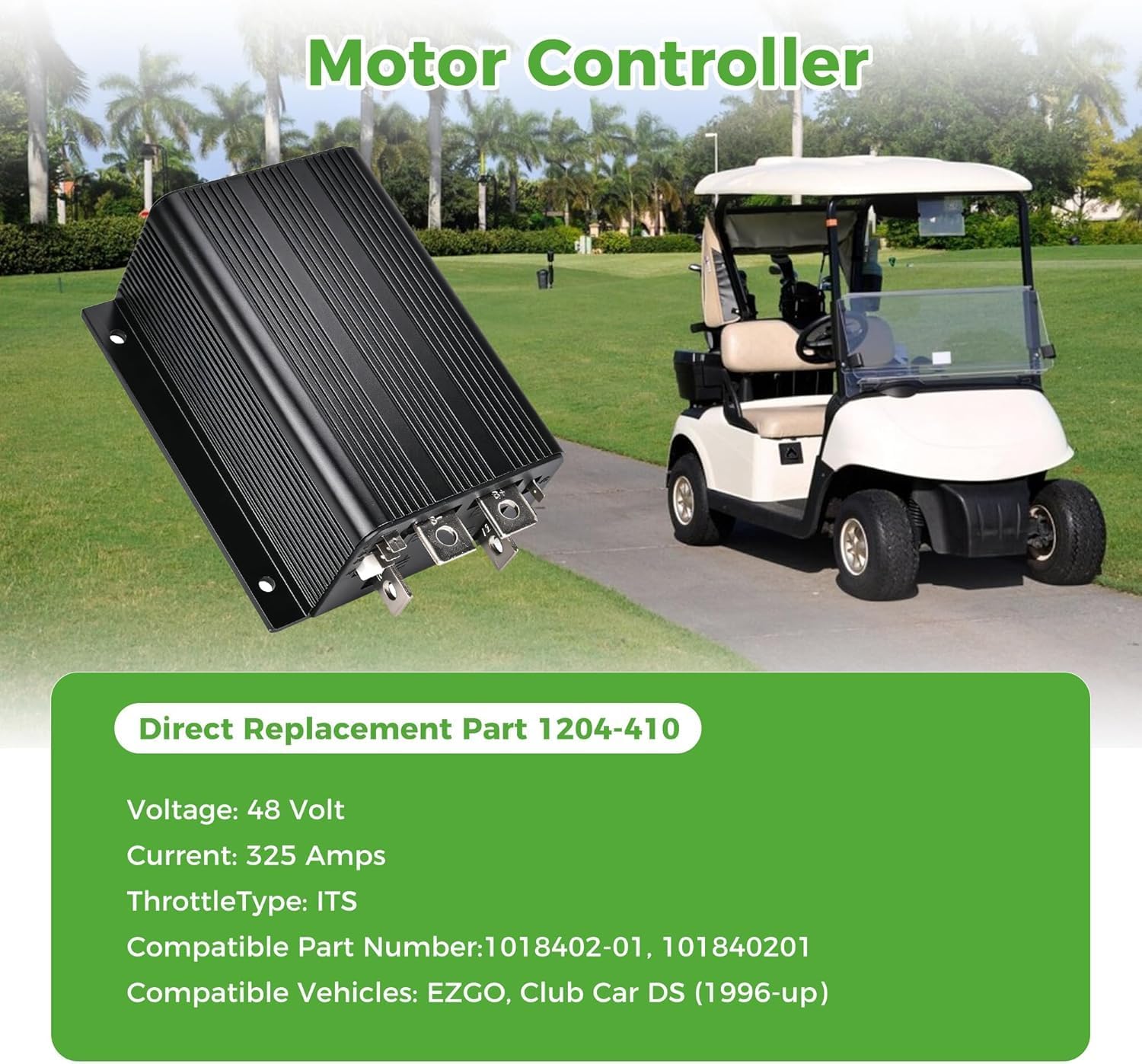

This controller cross-references Curtis part numbers 1204-410, 1204-412, 1204-411, and 101840201. It is intended to replace a compatible original controller while retaining the vehicle's existing wiring configuration, provided the connector layout, terminal arrangement, and electrical specifications match. Always compare your original controller and wiring before ordering.

The controller supports adjustable programming using a compatible Curtis 1313-4331 handheld programmer or 1314 PC Programming Station. This allows supported parameters to be configured for compatible vehicle requirements. In addition to the default 48V/325A peak configuration, alternative 48V/300A and 48V/225A configurations are listed as supported options. Confirm the exact configuration supplied with the seller before purchase, as the default and alternative ratings are not interchangeable assumptions.

For reliable operation, verify your golf cart's voltage, required current rating, inductive throttle input type, and original controller part number. Compatibility depends on the complete electrical setup, not just the cart's make and model year.

Key Features

• Designed for Club Car DS 1996-Up
  Intended for compatible Club Car DS golf carts manufactured from 1996 onward. Verify the original controller specifications before ordering.

• 48V System with 325A Peak Current
  Default configuration is 48V with a 325A peak current rating for compatible golf cart electrical systems.

• Curtis Controller Cross-Reference
  Replaces compatible controllers with part numbers 1204-410, 1204-412, 1204-411, and 101840201.

• 5kΩ–0Ω Inductive Throttle Input
  Designed for compatible inductive throttle systems using the specified resistance range and input configuration.

• Programmable Controller Settings
  Compatible with the Curtis 1313-4331 handheld programmer and 1314 PC Programming Station for supported parameter adjustments.

• Alternative Current Configurations
  Listed configurations include 48V/300A and 48V/225A in addition to the default 48V/325A peak rating. Confirm which configuration is supplied and required for your cart.

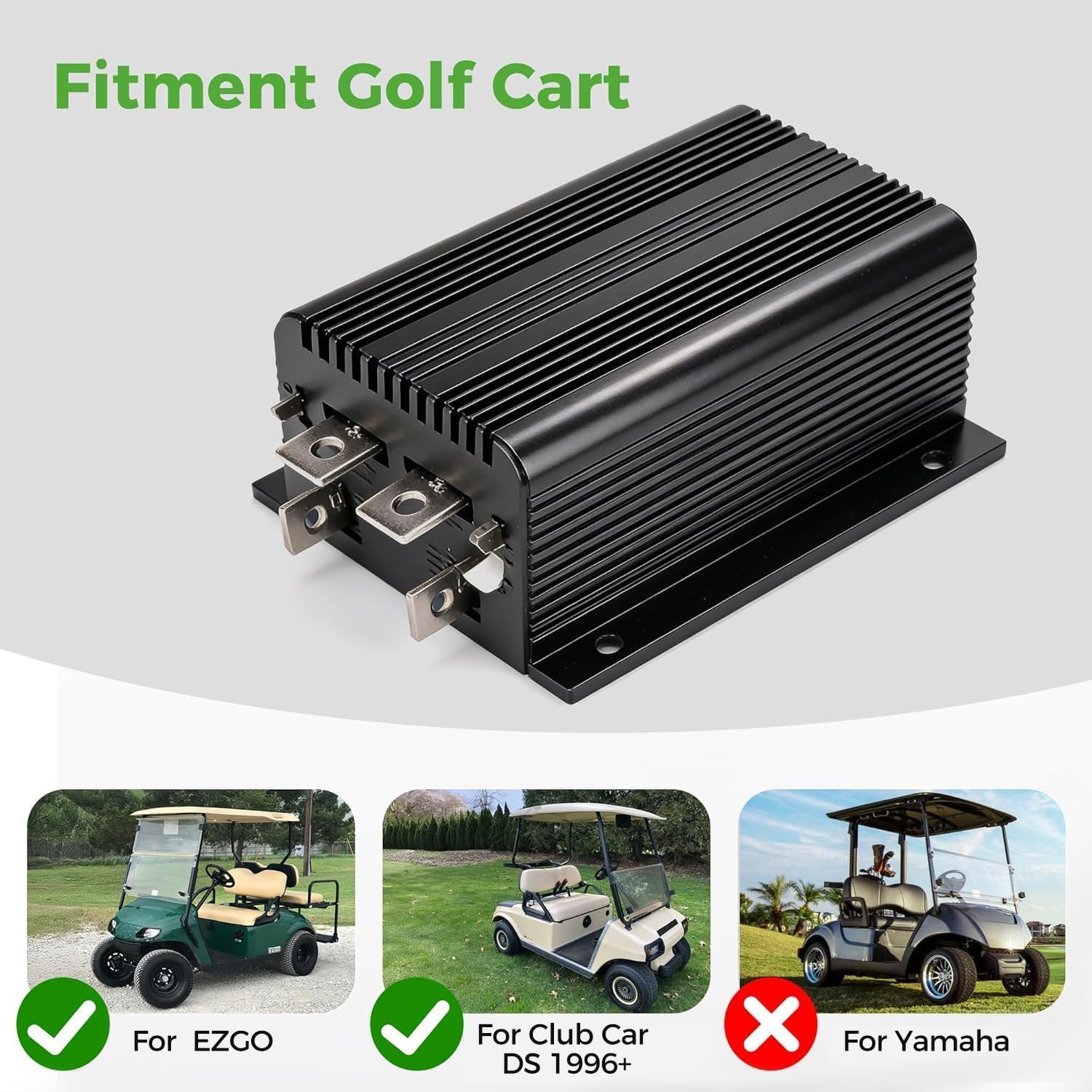

Fitment and Compatibility

Primary application:

• Club Car DS golf carts, 1996 and newer, with matching electrical and throttle configurations

Curtis Controller Cross-Reference Numbers:

• 1204-410

• 1204-412

• 1204-411

• 101840201

Required Specifications:

• 48V electrical system

• Compatible 5kΩ–0Ω inductive throttle input

• Matching controller connections and terminal layout

• Current rating and configuration appropriate for the original system

Available configuration information:

• 48V / 325A peak current: default configuration

• 48V / 300A: alternative configuration

• 48V / 225A: alternative configuration

Important Fitment Note: Model year alone does not guarantee compatibility. Before purchasing, confirm the original controller part number, system voltage, throttle type, wiring connections, and required current configuration. Do not assume compatibility with EZGO TXT, EZGO Marathon, or other golf cart models unless the exact controller specifications and application have been verified.

Installation and Programming Notes

• Disconnect the battery pack before servicing the controller.

• Compare the original controller's part number, terminal arrangement, and wiring configuration with the replacement unit.

• Confirm the throttle input type and required current configuration before installation.

• Use a compatible Curtis 1313-4331 handheld programmer or 1314 PC Programming Station only when programming is required and supported.

• Follow the golf cart manufacturer's service procedures or consult a qualified golf cart technician if you are unsure about the electrical configuration.

Package Includes

• 1 × 10L0L Golf Cart Speed Controller

Programmers and additional installation accessories are not included unless explicitly listed in the package contents.

Why Choose 10L0L?

10L0L offers golf cart accessories and replacement components designed to support maintenance, repair, and upgrades. Detailed specifications and OEM cross-reference information help you identify a controller that matches your golf cart's electrical system.
