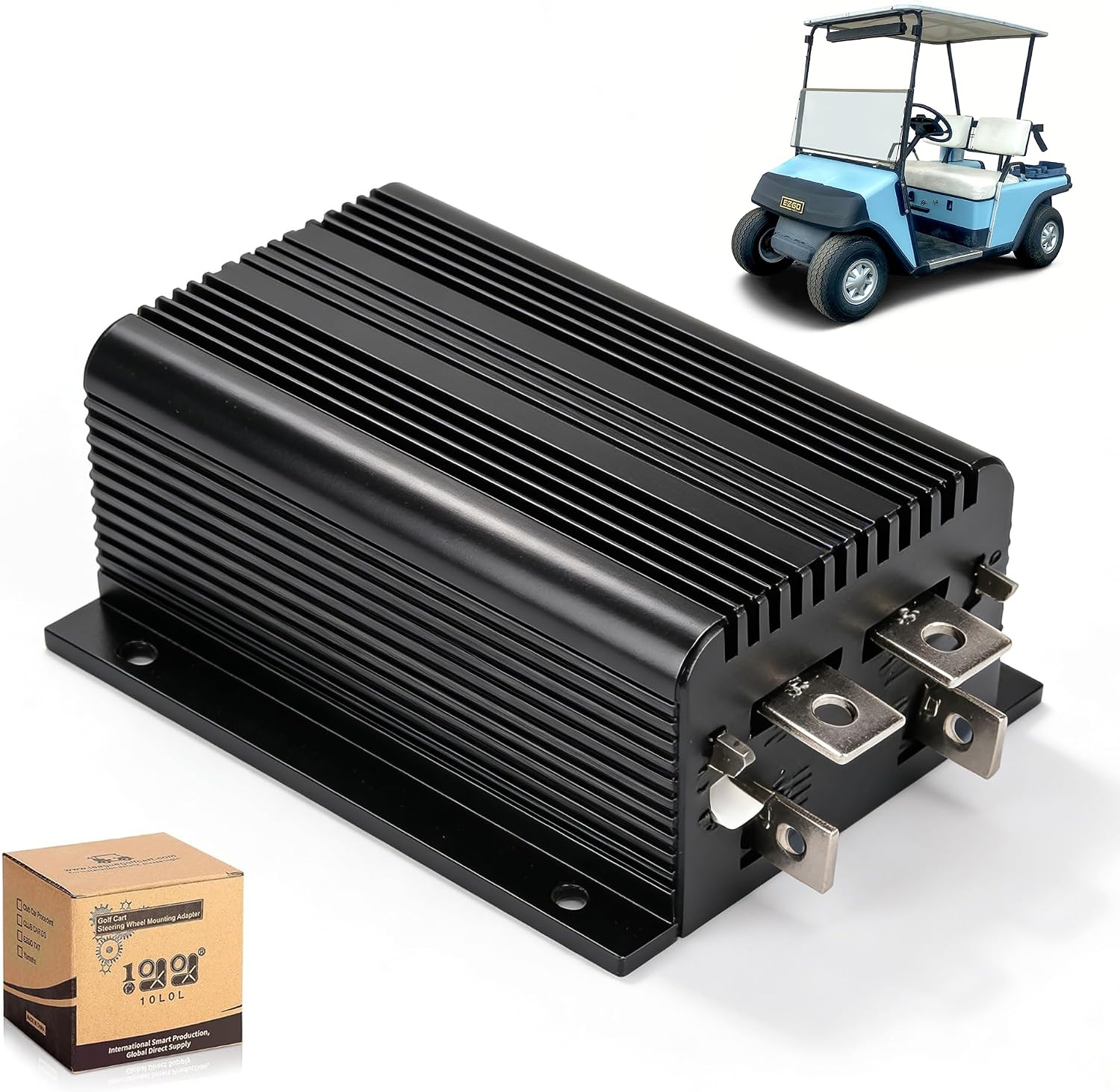

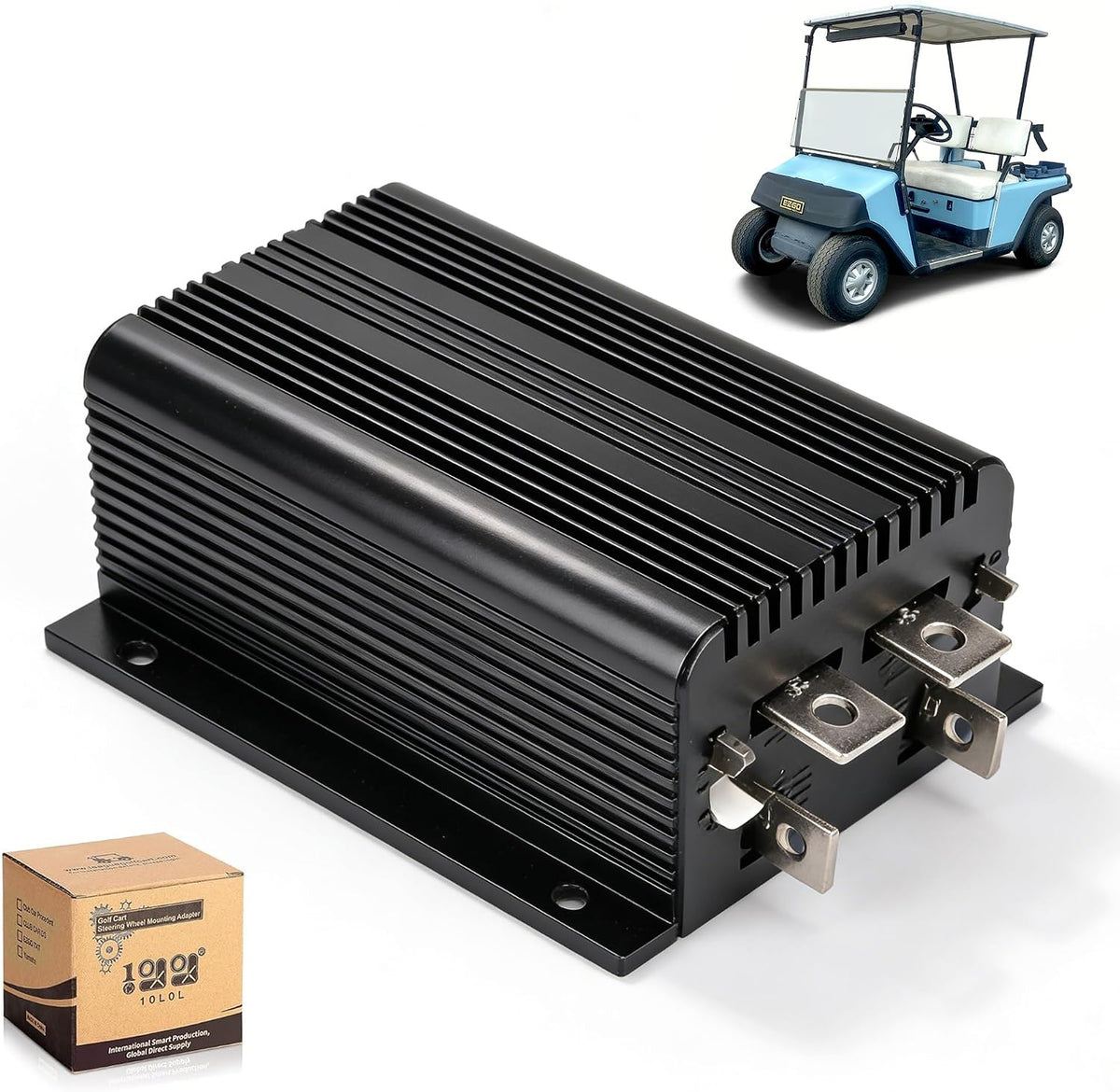

10L0L 36V 275A Golf Cart Speed Controller for Club Car DS and EZGO

Restore reliable motor control in your compatible golf cart with the 10L0L 36V 275A Golf Cart Speed Controller. Designed as a replacement for select Curtis motor controllers, this unit features a 36V operating voltage, a 275A current rating, and a default 0–5kΩ throttle input. It is intended for compatible golf cart electrical systems that match these specifications.

This controller cross-references Curtis controller part numbers 1204-027, 1204-009, 1204-032, and 1204-4201. It is listed for select Club Car DS and EZGO golf cart applications, including certain EZGO Marathon models. Because controller compatibility can vary by model year, motor configuration, throttle system, and original controller settings, always compare your existing unit's part number and specifications before ordering.

The controller comes with preset factory settings and supports reprogramming with a compatible Curtis 1313-3301 handheld programmer. Throttle input can be adjusted to one of eight alternative settings, subject to the controller's supported programming options. This flexibility can help accommodate compatible vehicle configurations when the required settings are verified.

Each unit is tested and inspected before shipment and includes a one-year warranty against defects. For a successful replacement, confirm the electrical specifications, throttle resistance range, wiring connections, and programming requirements of your golf cart before installation.

Key Features

• 36V, 275A Motor Controller
  Designed for compatible 36V golf cart electrical systems requiring a 275A controller.

• Curtis Controller Cross-Reference
  Replaces select Curtis controller models, including 1204-027, 1204-009, 1204-032, and 1204-4201. Confirm the original part number before purchasing.

• 0–5kΩ Throttle Input
  Features a default factory throttle input range of 0–5kΩ. Verify that your golf cart's throttle system matches the required specifications.

• Reprogrammable Settings
  Supports adjustment to one of eight alternative throttle input settings using a compatible Curtis 1313-3301 handheld programmer. The programmer is not included unless otherwise specified.

• Pre-Delivery Testing
  Each controller is tested and inspected before shipment to help verify product condition.

• One-Year Warranty
  Includes a one-year warranty against defects. Contact 10L0L for warranty terms and installation support.

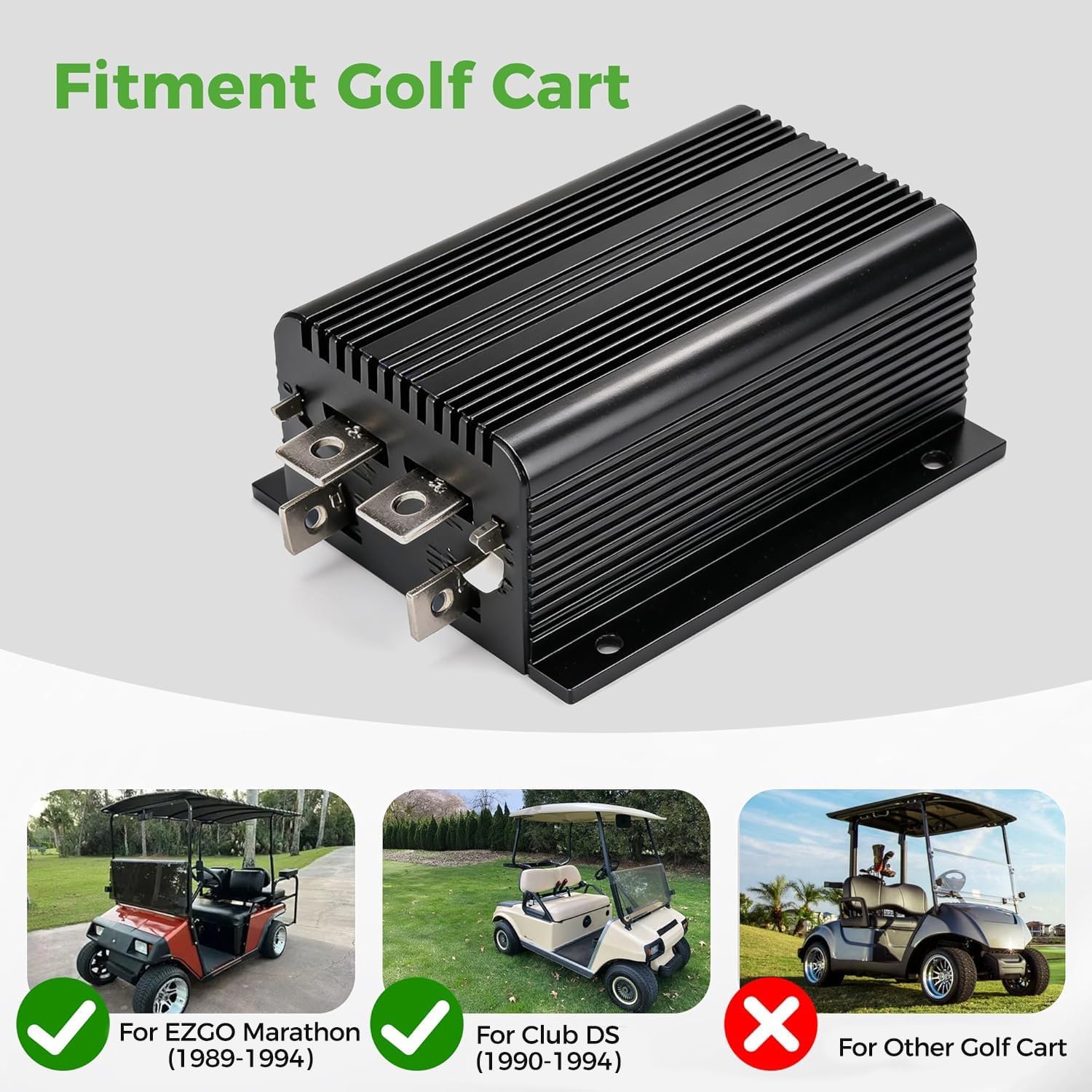

Fitment and Compatibility

Listed applications include select:

• Club Car DS golf carts

• EZGO TXT golf carts, 1995-2004

• EZGO Marathon golf carts, 1980-1994

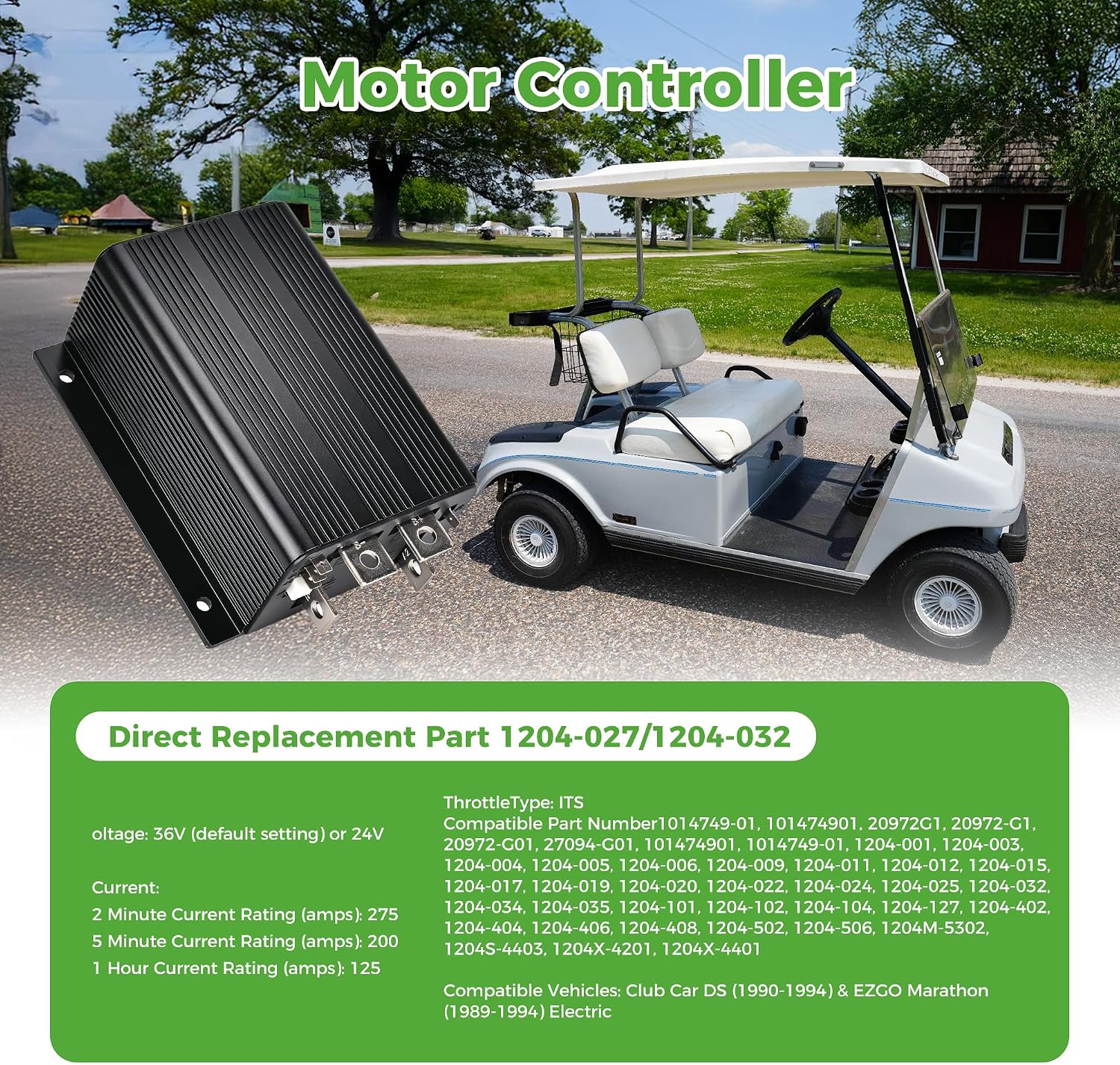

Curtis Controller Cross-Reference Numbers:

• 1204-027

• 1204-009

• 1204-032

• 1204-4201

Required Specifications:

• 36V electrical system

• 275A controller rating

• Compatible 0–5kΩ throttle input, or a supported alternative setting configured with the appropriate programmer

Important Fitment Note: Model year and cart brand alone do not guarantee compatibility. Before ordering, verify the original controller part number, motor type, throttle resistance, wiring connections, and required programming settings. Do not assume compatibility with all Club Car, EZGO, or other golf cart models.

Installation and Programming Notes

• Disconnect the battery pack before servicing the controller.

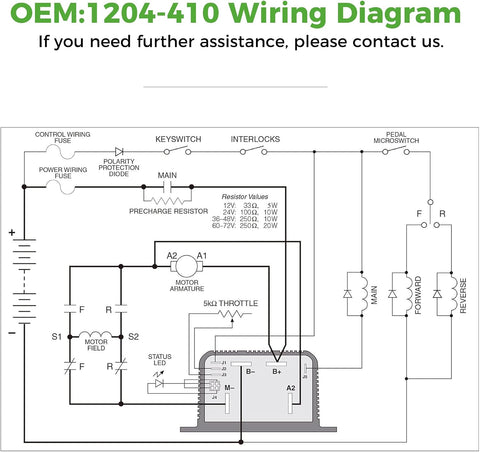

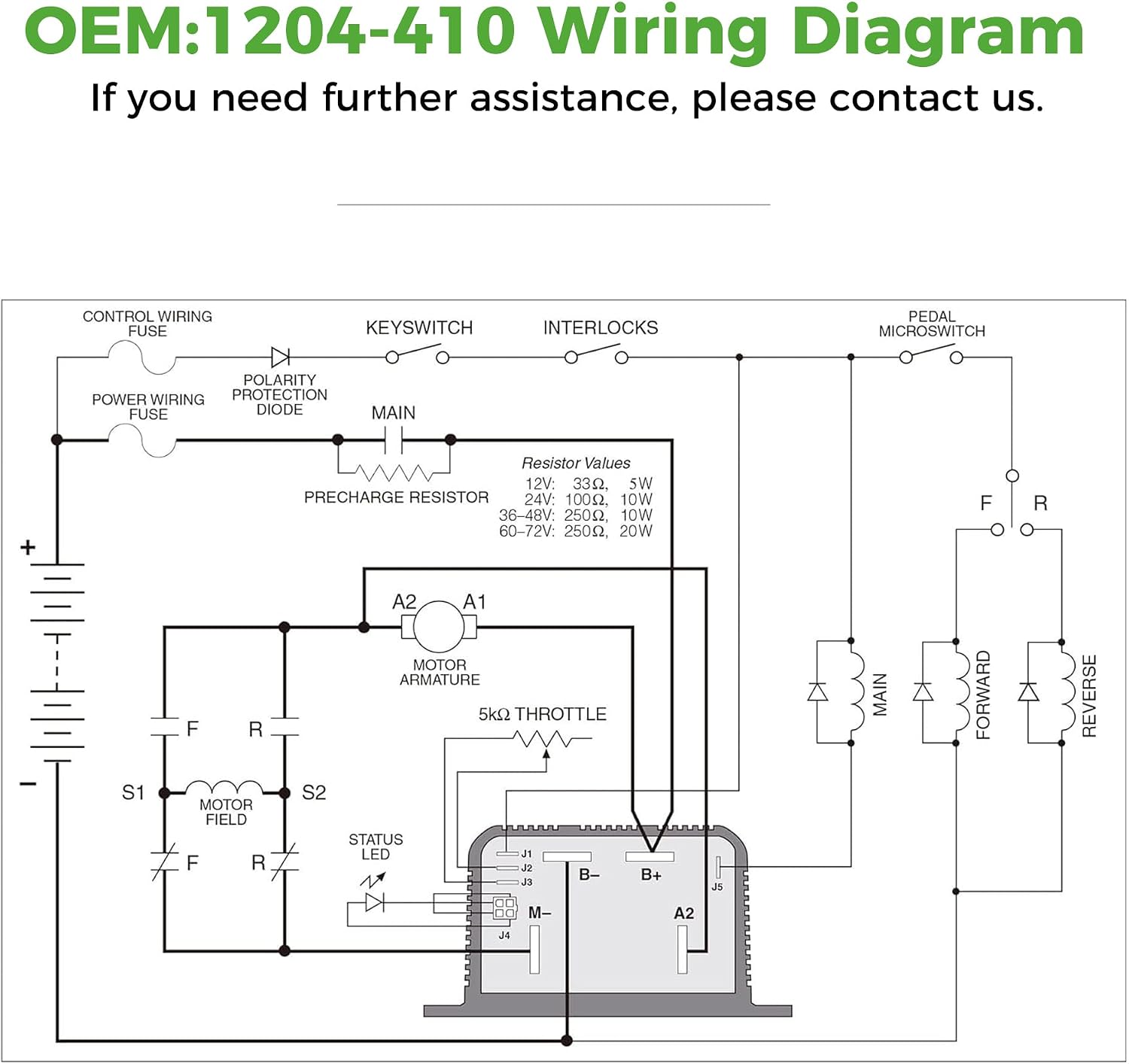

• Compare the original controller's part number and wiring configuration with the replacement unit.

• Confirm throttle input requirements before installation.

• If programming is required, use a compatible Curtis 1313-3301 handheld programmer and verify the correct settings for your vehicle.

• Follow the golf cart manufacturer's service procedures or consult a qualified golf cart technician if you are unsure about compatibility or wiring.

Package Includes

• 1 × 10L0L 36V 275A Golf Cart Speed Controller

Handheld programmer and additional installation accessories are not included unless explicitly listed in the package contents.

Why Choose 10L0L?

10L0L offers golf cart accessories and replacement components designed to support maintenance, repair, and upgrades. Clear specifications and controller cross-reference information help you identify a suitable replacement for your golf cart's electrical system.
