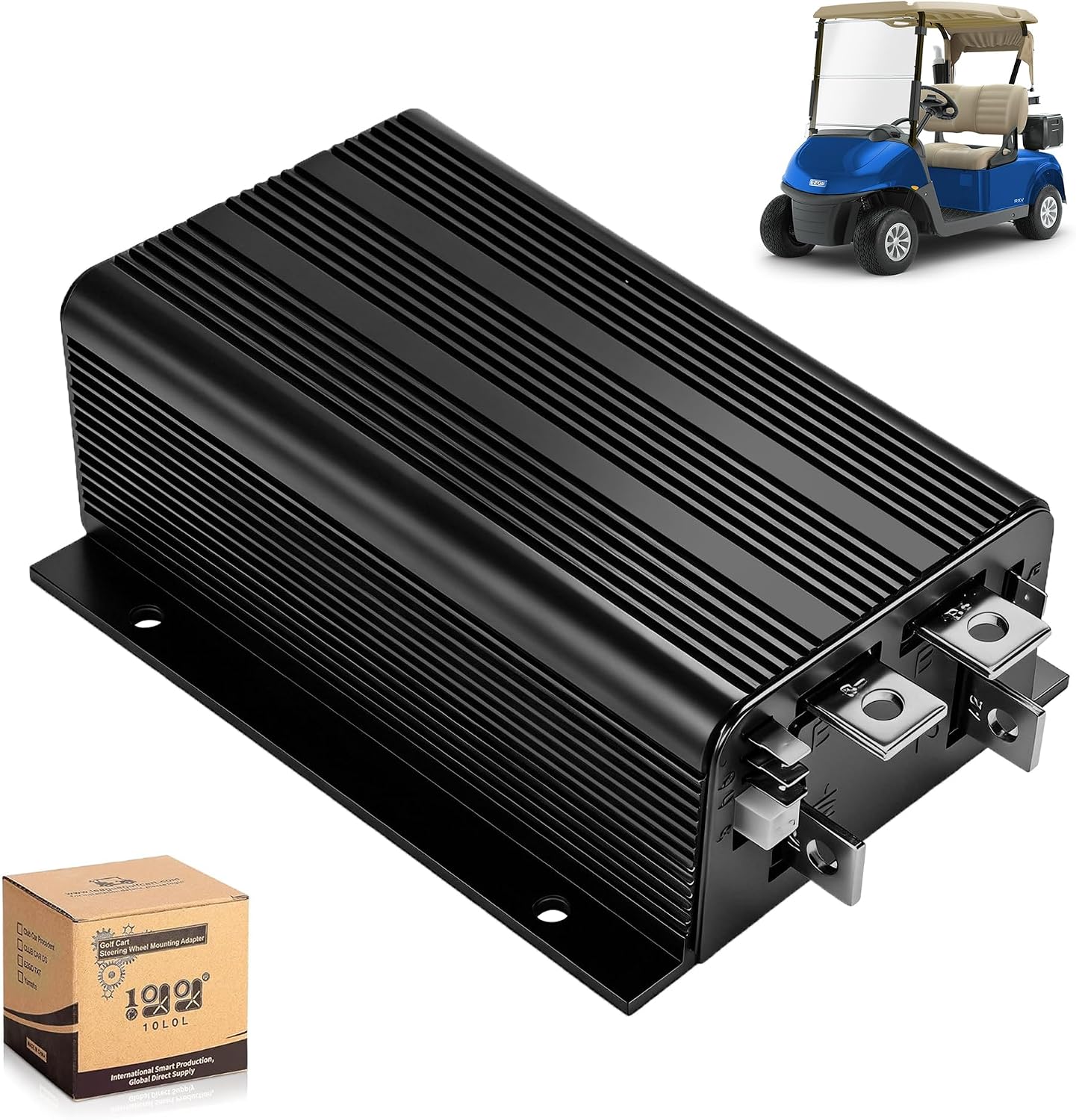

10L0L 1205-117 Golf Cart Speed Controller for EZGO TXT Series 1995-2004, 36V 400A

Restore responsive motor control to your compatible golf cart with the 10L0L 1205-117 Golf Cart Speed Controller. Designed for select 36V EZGO golf carts with Series drive systems and an inductive throttle sensor (ITS), this replacement controller provides a peak current rating of 400A to support compatible motor control requirements.

With a 36V operating system and 400A peak current output, this controller is designed to deliver controlled power to the motor during everyday driving, including frequent starts and stops. For carts operating on hills or carrying heavier loads, choosing a controller with the correct specifications is essential for maintaining appropriate motor control. Actual performance depends on the vehicle's motor, electrical system, battery condition, and controller configuration.

This unit replaces OEM controller part number 1205-117 and is listed for select EZGO TXT Series (1995–2004), Shuttle 950, Workhorse MPT 1000, and XI-875/881 models. It uses an inductive throttle position sensor (ITS) input to communicate throttle demand to the controller. Before ordering, verify your original controller's part number, system voltage, motor type, throttle sensor, connector layout, and mounting configuration.

Built with reinforced internal circuitry and a rugged housing, the controller is designed for reliable operation under normal golf cart operating conditions. It is intended as a replacement for a matching factory configuration. Confirm that the wiring interfaces and mounting points match your original unit before installation.

Key Features

• 36V, 400A Peak Current
  Designed for compatible 36V golf cart electrical systems requiring a controller with a 400A peak current rating.

• OEM Replacement for 1205-117
  Replaces compatible golf cart controllers bearing OEM part number 1205-117. Verify the original part number before purchasing.

• ITS Throttle Input
  Designed for compatible inductive throttle sensor (ITS) systems to support responsive motor control.

• Select EZGO Model Compatibility
  Listed for select EZGO TXT Series (1995–2004), Shuttle 950, Workhorse MPT 1000, and XI-875/881 models. Confirm the exact vehicle configuration before ordering.

• Durable Construction
  Features reinforced internal circuitry and a rugged housing designed to withstand typical operating vibration and heat.

• Replacement Installation Design
  Intended to fit compatible original wiring and mounting configurations. Verify connector and mounting compatibility before installation; modifications may be necessary if the existing setup differs.

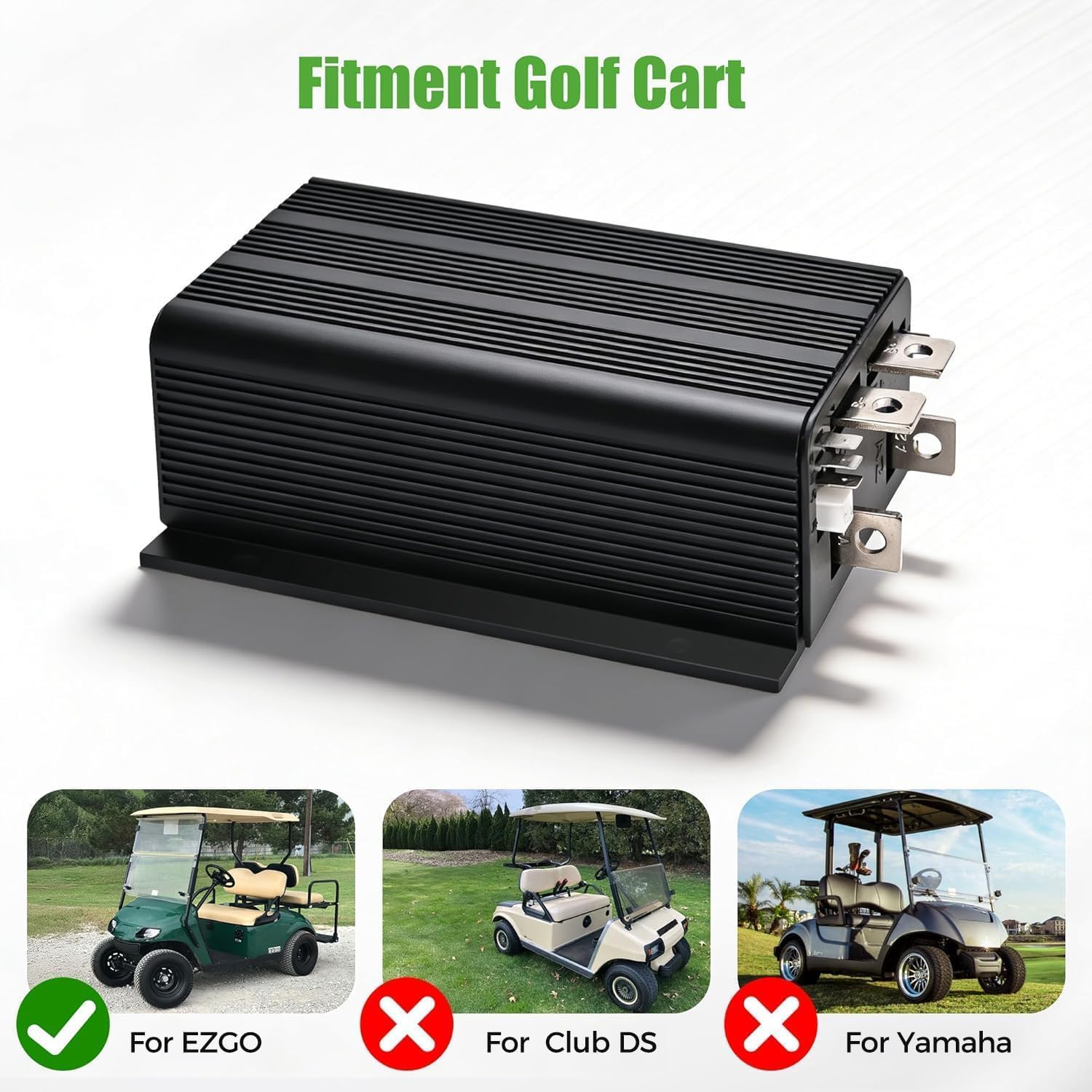

Fitment

Listed applications include select:

• EZGO TXT Series golf carts, 1995–2004

• EZGO Shuttle 950

• EZGO Workhorse MPT 1000

• EZGO XI-875 / XI-881

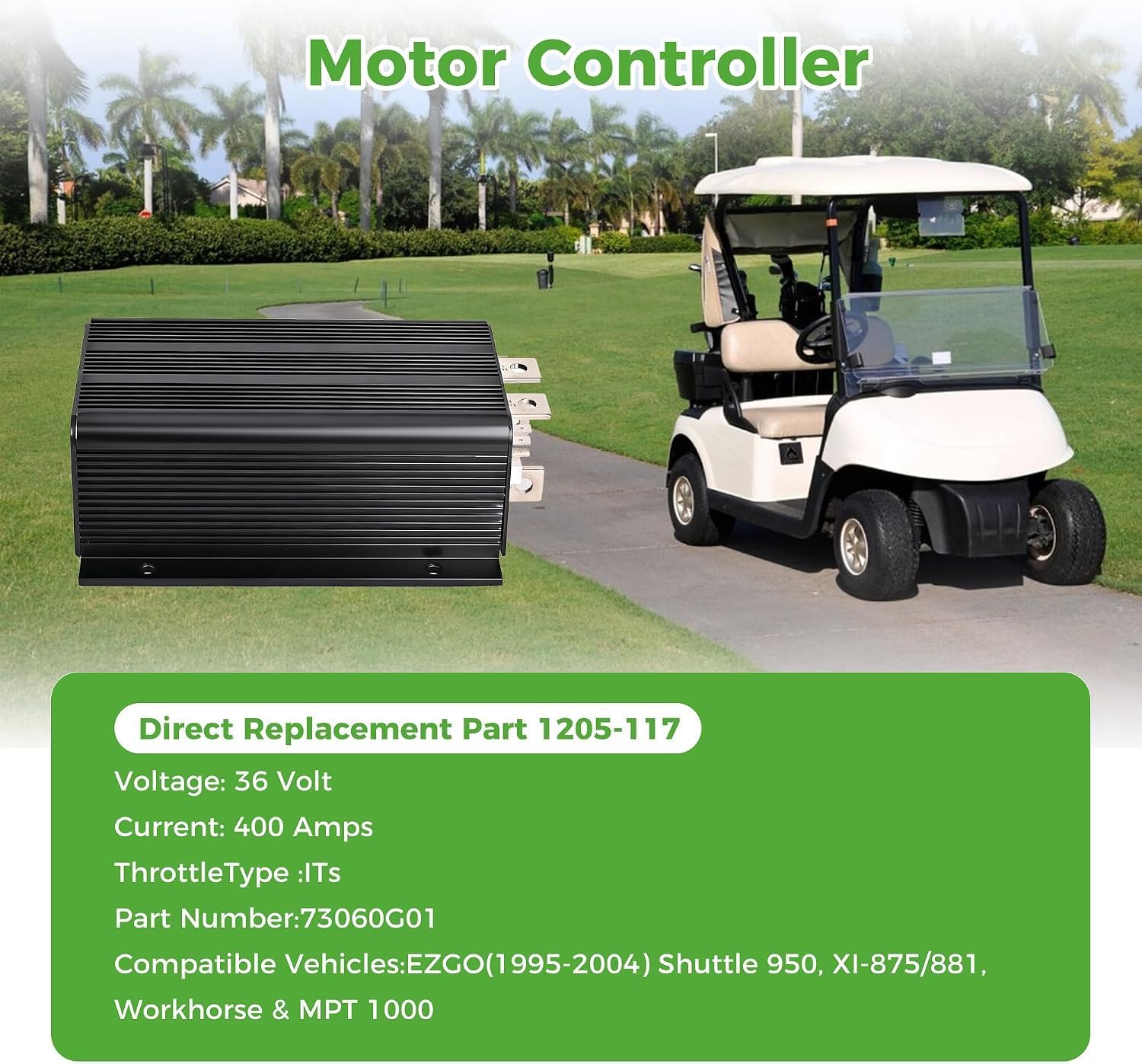

Key Specifications:

• Voltage: 36V

• Peak Current: 400A

• Throttle Type: Inductive Throttle Sensor (ITS)

• OEM Replacement Part Number: 1205-117

Important Fitment Note: Compatibility depends on the original controller, motor and throttle configuration, and wiring connections. Model name and year alone do not guarantee fitment. Confirm that your existing controller uses part number 1205-117 and matches the specifications listed above before placing an order.

Installation Notes

• Disconnect the battery pack before servicing the controller.

• Compare the original controller's part number, connectors, terminal layout, and mounting points with the replacement unit.

• Confirm the motor type and ITS throttle configuration before installation.

• Follow the manufacturer's service instructions or consult a qualified golf cart technician if you are unsure about the electrical setup.

Package Includes

• 1 × 10L0L 1205-117 Golf Cart Speed Controller

Additional wiring, mounting hardware, and installation accessories are not included unless explicitly listed in the package contents.

Why Choose 10L0L?

10L0L offers golf cart accessories and replacement components designed to support routine maintenance, repairs, and upgrades. Clear specifications and OEM part number references help you identify a replacement controller suited to your golf cart's electrical system.
