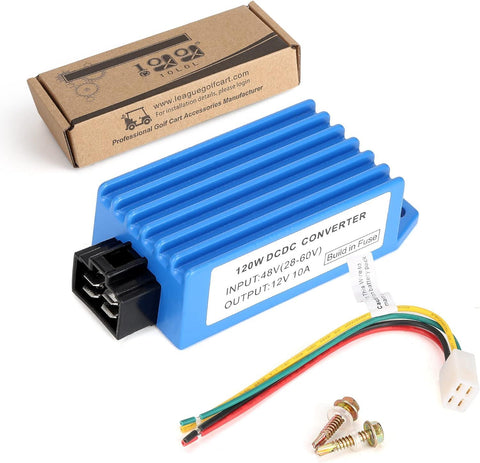

- Input 28-60V, output 12V, rated power 120W, safely converts 24V/36V/48V/60V electric golf cart battery to 12 Volts 10 Amps
- Application to 12V golf cart LED light kit(headlight, under low light, roof light), electric horn, screen, monitoring system and DIY etc.
- Built in fuse, over voltage protection, over-current protection(Max 12A), conversion erfficiency: >=91%
- Size 100*42*26.5mm, aluminum shell with epoxy potting, waterproof IP67, dustproof, anti-shock

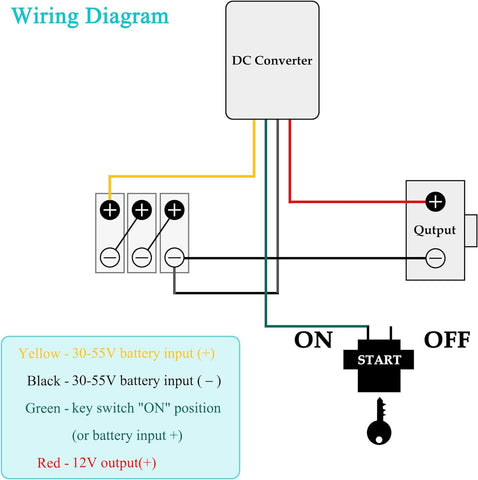

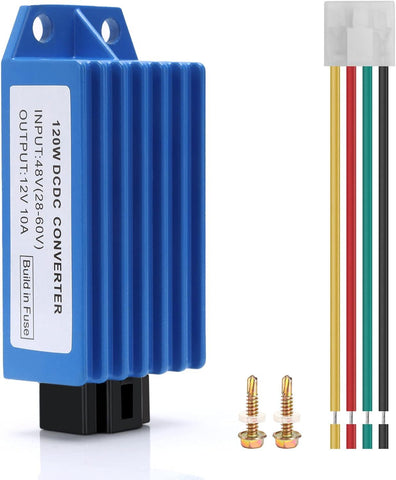

- Yellow Wire Input(+) from battery, Green Wire switch input(+) from key switch, Black Wire ground(-) battery, Red Wire 12V switch output(+)
