10L0L Golf Cart Front Wheel Bearing Kit for Yamaha G2 G8 G9 G11 G14 G16

The 10L0L Front Wheel Bearing Kit provides replacement bearing and sealing components for compatible Yamaha gas and electric golf carts. The kit is designed for select Yamaha G2, G8, G9, G11, G14, G16, G19, G20, G21, G22 and G29 applications, with individual components matched to specific model configurations.

Compatible with Yamaha Golf Carts

The kit is designed for select Yamaha models including:

• Yamaha G2
• Yamaha G8
• Yamaha G9
• Yamaha G11
• Yamaha G14
• Yamaha G16
• Yamaha G19
• Yamaha G20
• Yamaha G21
• Yamaha G22
• Yamaha G29 / Drive2

Compatibility can vary by bearing position and vehicle configuration, so verify the original part number before ordering.

Inner Axle Bearing

The front inner axle sealed ball bearing is listed as a replacement for OEM #93306-005Y3 and is specified for Yamaha G9 1993-Up, G14, G16, G19 and G22 electric models, as well as compatible Yamaha Drive2 applications.

Commutator Bearing

The kit also includes a bearing listed as a replacement for OEM #93306-204X0, specified for Yamaha G8, G9, G14, G16 and G19 models.

Front Hub Sealing Components

In addition to the bearings, the kit includes a replacement seal and a rubber-coated steel front hub dust cover. These components help protect the wheel hub and bearing area from contamination during regular operation.

Convenient Bearing Service Kit

This kit combines the primary bearing, seal and dust-cover components into one package, providing a convenient option when servicing compatible Yamaha front wheel hub assemblies.

Key Features

• Designed for select Yamaha G2, G8, G9, G11, G14, G16, G19, G20, G21, G22 & G29
• Compatible with select gas and electric applications
• Includes inner and outer/front hub bearing components
• Bearing reference 93306-204X0
• Bearing reference 93306-005Y3
• Seal reference 93102-30083
• Rubber-coated steel front hub dust cover
• Dust cover OEM reference JN6-F5118-00 / JN6-F5118-00-00
• Designed for front wheel hub service

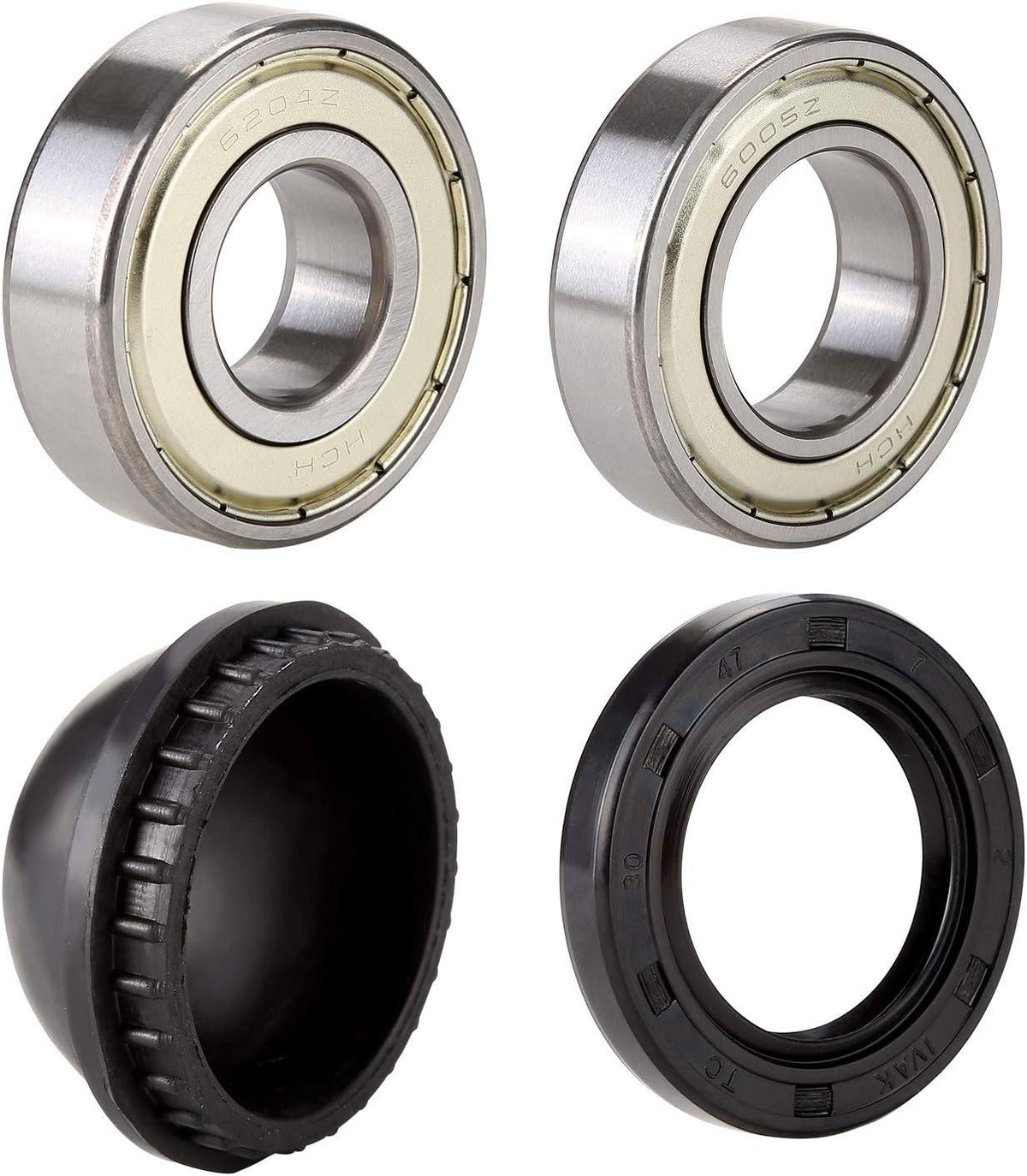

Package Includes

• 1 × Inner Bearing, replacement for 93306-204X0
• 1 × Outer Bearing, replacement for 93306-005Y3
• 1 × Seal, replacement for 93102-30083
• 1 × Rubber-Coated Steel Front Hub Dust Cover

Important Compatibility Note

Yamaha bearing applications can vary by model, year and bearing position. The OEM numbers and model applications above should be verified against your original components before ordering. If you are unsure about compatibility, provide your golf cart model, year and original part number before purchase.
