Introduction: The Voltage Question Every Cart Owner Eventually Asks

You're looking at a used golf cart, and the seller mentions it's a 36-volt. Your neighbor's cart is a 48-volt and seems noticeably quicker up hills. Someone on a forum says 48 volts is "better." Someone else says their 36-volt has been running fine for 15 years. Who's right?

The voltage of a golf cart's electrical system is not just a number on a spec sheet. It determines how much power the motor can draw, how the cart performs under load, what accessories you can run, and what every electrical component you ever replace must be compatible with. Choosing the wrong voltage solenoid or voltage reducer — even once — can destroy that component instantly.

This guide explains the real differences between 36-volt and 48-volt golf cart systems, not in abstract engineering terms, but in what actually matters when you're buying, maintaining, or upgrading a cart.

Quick Answer: 36V or 48V — Which Is Better?

The bottom line: A 48V system is objectively more efficient and more powerful. But a well-maintained 36V cart is perfectly capable for most recreational use. The real question is not "which is better" but "which is right for how I use my cart."

Part 1: The Basic Physics — What Voltage Actually Means

Before diving into comparisons, understand one core concept: voltage is electrical pressure. Think of it like water in a pipe. Voltage is the water pressure. Current (amps) is the flow rate — how much water moves through the pipe. Power (watts) is the total work being done — pressure times flow.

A 48-volt system pushes electrical current through the motor with higher pressure than a 36-volt system. This means it can deliver the same amount of power with less current flow. Lower current means less energy wasted as heat in the cables, controller, and motor windings. That is why a 48V cart runs cooler, accelerates harder, and goes farther on the same battery capacity.

Part 2: Real-World Performance — What You'll Actually Feel

Speed: Modest but Real

A stock 36V EZGO TXT typically tops out around 12-14 mph. A stock 48V Club Car Precedent or EZGO RXV will reach 14-19 mph. The difference of 2-5 mph doesn't sound dramatic, but on a golf cart, it is noticeable — especially when keeping up with neighborhood traffic or crossing a long stretch of road.

What voltage alone does not determine is whether the cart feels "fast." Controller programming, motor type, tire size, and gear ratio all play larger roles in top speed than voltage alone. A high-performance 36V motor with an upgraded controller can outrun a stock 48V cart. But on otherwise identical setups, the 48V cart will be faster.

Torque: Where 48V Pulls Ahead

This is the most noticeable real-world difference. Torque is what gets you moving from a stop, pushes you up a hill, and keeps you going when the cart is loaded with four passengers and a cooler. A 48V system delivers more torque at the motor because it can push more total power — watts — through the system at a lower current.

If you regularly climb steep hills, carry heavy loads, or use your cart on soft terrain like sand or mud, a 48V cart will feel significantly stronger. A 36V cart will do the job, but it will slow more on hills and draw more current doing it, which generates more heat in the controller and motor.

Range: Efficiency Matters

This is the least intuitive difference. A 48V system is more energy-efficient than a 36V system. Because it delivers the same power with less current, less energy is lost as heat in the cables, solenoid contacts, and motor windings. In practical terms, a 48V cart with a comparable battery capacity will often travel 10-20% farther on a single charge.

However, battery capacity — measured in amp-hours — is not the same across 36V and 48V packs. A 36V pack of six 6V batteries (each typically 225Ah) holds a different total energy than a 48V pack of six 8V batteries (each typically 170Ah) or four 12V batteries (each typically 150Ah). Comparing range requires comparing watt-hours — voltage times amp-hours — not just voltage.

Part 3: Why the Voltage Difference Matters for Every Component You Buy

This is the section most "36V vs 48V" guides skip, and it is the one that matters most for anyone maintaining or upgrading an electric cart.

Voltage Reducers: Must Match System Voltage

A voltage reducer steps your pack voltage down to 12V to power headlights, taillights, turn signals, USB chargers, and any other 12V accessories. A 36V reducer expects 36V input. A 48V reducer expects 48V input.

Install a 36V reducer on a 48V cart, and the internal components will overheat and fail — possibly taking your accessories with them. Install a 48V reducer on a 36V cart, and it may never reach its designed output voltage, leaving your lights dim and your stereo cutting out.

10L0L offers a reducer that accepts both 36V and 48V input, which eliminates this risk entirely. The 25A voltage reducer accepts 36V, 48V, and 72V, so it works with whatever system you have — and whatever system you might upgrade to.

Solenoids: The Coil Voltage Must Be Correct

The solenoid is the heavy-duty switch that connects battery power to the motor controller when you press the accelerator. Inside every solenoid is an electromagnetic coil. That coil is designed for a specific voltage. A 36V solenoid's coil needs 36V to pull the contacts closed. A 48V solenoid's coil needs 48V.

Install a 36V solenoid on a 48V cart, and the coil will burn out — often within the first few presses of the accelerator. Install a 48V solenoid on a 36V cart, and it may not engage reliably because the coil isn't receiving enough voltage to create a strong magnetic field.

When replacing a solenoid, the voltage rating on the new part must match your cart's system voltage. A replacement solenoid is available for both 36V and 48V systems — confirm your cart's voltage before ordering.

Battery Cables: Lower Voltage Needs Thicker Cables

This is the most overlooked implication of system voltage. Because a 36V system draws higher current to deliver the same power as a 48V system, the battery cables in a 36V cart carry more amps. Higher current means more heat and more voltage drop in the cables — unless the cables are adequately sized.

For 36V carts, battery cables should be 4 AWG or thicker to minimize resistance. For 48V carts, 6 AWG is typically sufficient for stock setups, though 4 AWG is recommended for upgraded controllers or high-performance motors. If your battery cables show signs of corrosion, stiffness, or have warm spots after driving, upgrade to heavy-gauge replacements regardless of your system voltage.

Part 4: Can You Upgrade a 36V Cart to 48V?

Yes — but it is a project, not a simple battery swap. Upgrading from 36V to 48V delivers more torque, more speed, and better efficiency, but it requires replacing or verifying compatibility of several components.

What Must Be Replaced

What May Need to Be Replaced or Verified

The Reality Check: Total Upgrade Cost

A complete 36V-to-48V conversion — new batteries, charger, solenoid, voltage reducer, and controller — typically costs $800 to $1,500 in parts. Professional installation adds several hundred more. This is not a weekend project on a tight budget.

For some owners, the cost is justified by the performance gain. For others, it is a sign that selling the 36V cart and buying a factory 48V model is the more practical path. There is no universally right answer — but knowing the full scope of the project before starting it prevents an expensive, half-finished cart sitting in the garage.

Part 5: 36V vs 48V — Which Is Right for You?

Part 6: Common Misconceptions

Misconception 1: "48V is always faster."
A stock 48V cart with a conservative controller and small tires may be slower than a 36V cart with a high-performance motor and an upgraded controller. Voltage sets the potential; the controller, motor, and gearing determine how much of that potential is used.

Misconception 2: "I can just swap the batteries to upgrade."
No. As covered in Part 4, upgrading from 36V to 48V requires replacing or verifying the compatibility of at least the batteries, charger, solenoid, and voltage reducer — and possibly the controller and motor.

Misconception 3: "36V systems are obsolete."
They are not. Millions of 36V carts remain in service worldwide. Parts are widely available. A properly maintained 36V system will perform reliably for years. The fact that 48V is more efficient does not make 36V inadequate for most recreational use.

Frequently Asked Questions

Q: Can I use a 48V battery in a 36V golf cart?
A: Not without a full system upgrade. Connecting a 48V battery pack to a 36V motor controller, solenoid, and accessories will almost certainly damage or destroy those components. The entire system must be converted together.

Q: How do I know if my cart is 36V or 48V?

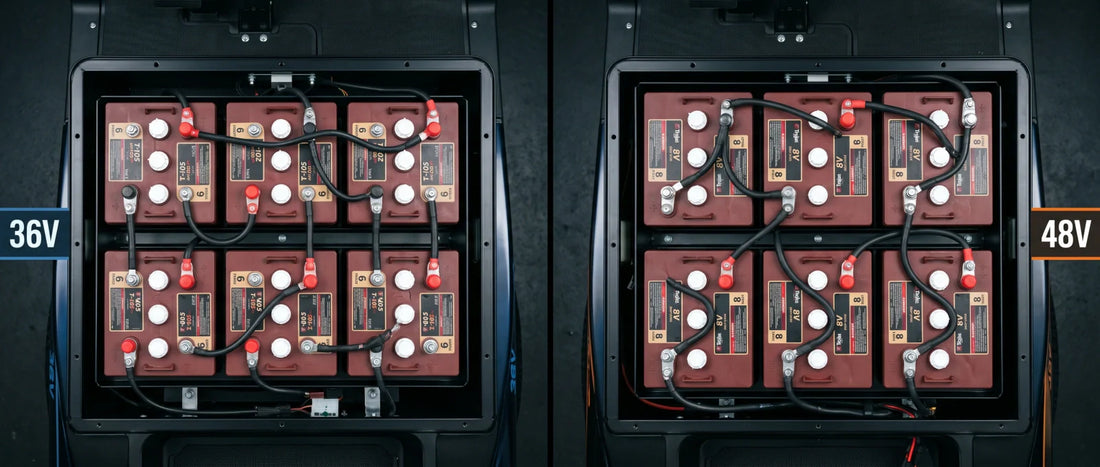

A: The simplest method is to count the batteries and check their voltage ratings. Six 6V batteries = 36V. Six 8V batteries = 48V. Four 12V batteries = 48V. You can also measure the total pack voltage with a multimeter — a fully charged 36V pack reads about 38.2V; a 48V pack reads about 50.9V.

Q: Which lasts longer, 36V or 48V batteries?
A: Lifespan depends more on battery quality and maintenance than voltage alone. A well-maintained set of 36V flooded lead-acid batteries can last 4-6 years. A neglected 48V set can fail in two. Proper charging, watering, and cleaning extend lifespan regardless of voltage.

Q: Can I mix 6V and 8V batteries in the same pack?
A: Never. All batteries in a series pack must be the same voltage, capacity, age, and ideally the same brand and model. Mixing different battery types creates severe imbalance that rapidly destroys the entire pack.

Related Guides

• Golf Cart Voltage Reducers & Regulators: Complete 12V Power Guide — Safely power 12V accessories on any voltage system

• Why Does My Golf Cart Battery Die So Fast? Common Causes + Fixes — Diagnose and fix battery drain issues

• Golf Cart Hard to Start? Common Causes & Fixes for Gas & Electric Models — Electrical system troubleshooting

• Why Does My Golf Cart Smell Like Burning Plastic? Common Causes + Fixes — Identify overheating electrical components

• How to Store a Golf Cart Outside: Protection Tips for Sun, Rain & Winter — Battery care and winterization for both voltage systems

Final Verdict: Voltage Is a System, Not a Number

The voltage of your golf cart is not just a specification to glance at. It determines what every electrical component must be compatible with, how the cart performs under load, and what your upgrade path looks like.

A 36V cart is not obsolete. A 48V cart is not automatically a speed machine. What matters is understanding the system you have, maintaining it properly, and — when the time comes — choosing components that match.

Understand your system. Choose compatible components. Drive with confidence.
