Your golf cart’s battery cables are the unsung heroes of the electrical system. They carry hundreds of amps from the battery pack to the controller, motor, and accessories. But when they corrode, loosen, or simply age out, they become the weak link that can cause poor performance, strange electrical gremlins, and even fire hazards.

Most owners never think about battery cables until something goes wrong. And by then, the damage may already be done. This guide shows you exactly when to replace your golf cart battery cables, what warning signs to look for, and how to choose the right upgrade for your cart.

Quick Answer: How Do I Know If My Battery Cables Are Bad?

You should consider replacing your battery cables if you notice any of these signs:

• Visible corrosion (white/green powder on terminals)

• Cracked, stiff, or bulging insulation

• Hot cables or terminals after driving (warm is normal, hot is not)

• Voltage drop over 0.5V between battery and controller under load

• Intermittent power loss or sudden shutdowns

• Slow cranking (gas carts) or sluggish acceleration (electric carts)

• Battery pack won’t hold a charge despite good batteries

👉 Most factory cables are 6 AWG (American Wire Gauge). Upgrading to 4 AWG or 2 AWG reduces voltage drop and improves performance – especially on lifted carts or those with heavy accessories.

Why Battery Cable Condition Matters (The Voltage Drop Problem)

Every cable has resistance. The longer and thinner the cable, the more resistance it creates. When you draw high current (accelerating, climbing a hill), resistance turns into voltage drop – electricity that never reaches your motor but instead turns into heat.

Example: A stock 6 AWG cable on a 48V system can drop 1.5‑2V under heavy load. That’s 3‑4% of your battery power turned into waste heat. On a 48V pack, a 2V drop is significant – it can trigger low‑voltage cutoff and make the cart feel sluggish.

Upgrade to 4 AWG or 2 AWG and the drop can be cut in half. That’s more power to the wheels and less heat in the cables.

👉 For high‑performance or lifted carts, 2 AWG tinned copper cables are the gold standard.

7 Warning Signs Your Battery Cables Need Replacement

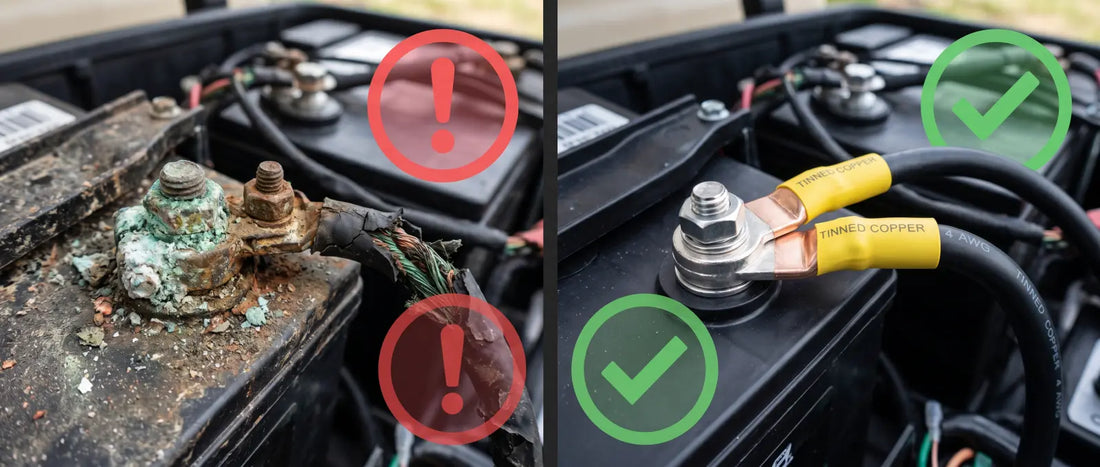

1. Visible Corrosion on Terminals or Lugs

What to look for: White, green, or bluish powder around the terminal ends. This is corrosion caused by acid fumes from the batteries.

Why it’s dangerous: Corrosion acts as an insulator, increasing resistance. It also weakens the connection mechanically.

Self‑check: Look at each battery terminal. If you see any crusty buildup, clean it with baking soda and water. If corrosion has crept under the insulation or you see pitting on the lug, replace the cable.

2. Cracked, Bulging, or Stiff Insulation

What to look for: Insulation that feels hard, has visible cracks, or looks swollen in places.

Why it’s dangerous: Cracked insulation allows moisture and dirt to reach the copper wire, accelerating corrosion. Bulging indicates internal overheating – a sign of excessive resistance.

Self‑check: Bend each cable gently. If the insulation cracks or feels like hard plastic instead of flexible rubber, replace it.

3. Cables or Terminals Get Very Hot After Driving

What to look for: After a 10‑15 minute drive, touch the battery cables and terminals (use the back of your hand first to avoid burns). Warm is normal. Too hot to hold is a problem.

Why it’s dangerous: Heat is wasted energy. It means there’s excessive resistance somewhere – usually a loose connection, corroded terminal, or undersized cable.

Self‑check: After driving, feel each terminal. If one is significantly hotter than the others, that connection is bad. If all are hot, the cables may be undersized for your cart’s current draw.

4. Voltage Drop Over 0.5V Under Load

What to look for: You’ll need a multimeter for this. With the cart on level ground, measure voltage at the battery pack (main positive to main negative). Then measure voltage at the controller input (B+ to B-). The difference is the voltage drop across the cables.

Why it’s dangerous: A drop of more than 0.5V means your cables are robbing power. On a 48V system, a 1V drop means you’re losing over 2% of your battery capacity as heat.

Self‑check: Perform the test while driving up a slight hill or holding the brake to simulate load.

5. Intermittent Power Loss or Sudden Shutdowns

What to look for: The cart loses power for a split second and then recovers, or it suddenly shuts off completely while driving. Restarting may work normally for a while.

Why it’s dangerous: This is often caused by an internal break in a cable or a loose terminal connection that vibrates open under load. It can leave you stranded.

Self‑check: Wiggle each cable while the cart is off. If any feels loose or moves at the terminal, tighten it. If the problem persists, the cable may have internal corrosion.

6. Sluggish Acceleration or Reduced Hill‑Climbing Power

What to look for: Your cart feels weaker than it used to, especially on hills or when starting from a stop. Batteries test fine, but performance is down.

Why it’s dangerous: While not immediately dangerous, it’s a sign of excessive resistance. You’re leaving power on the table and stressing other components.

Self‑check: Compare your cart’s performance to a similar model. If yours is noticeably slower, suspect cables, especially on an otherwise well‑maintained cart.

7. Charging Issues – Long Charge Times or Incomplete Charges

What to look for: The charger runs for much longer than usual, or the battery pack never reaches full voltage.

Why it’s dangerous: High resistance in cables can confuse the charger’s voltage sense circuit. The charger may overcharge or undercharge the pack, damaging batteries.

Self‑check: Measure pack voltage immediately after charging. If it’s significantly below full charge (e.g., 50.9V for a 48V pack), check cable voltage drop.

How to Test Battery Cables with a Multimeter (Step‑by‑Step)

👉 If you find a drop over 0.5V total, replace your cables with a heavier gauge (4 AWG or 2 AWG).

4 AWG vs 2 AWG vs 6 AWG – Which One Do You Need?

Don’t oversize just for the sake of it. 2 AWG is thicker and harder to route. For 95% of carts, 4 AWG tinned copper is the ideal upgrade.

👉 For lifted carts with 23″+ tires and upgraded controllers, 2 AWG is the smart choice.

Why Tinned Copper? (The Material Advantage)

Most factory cables are bare copper. Bare copper oxidizes over time, turning dark and increasing resistance. In humid or coastal environments, corrosion eats away at the strands.

Tinned copper has a thin layer of tin over the copper strands. This tin layer prevents oxidation and corrosion, even in wet environments. The result: lower resistance over the life of the cable, fewer connection problems, and longer cable life.

👉 10L0L battery cables are made from 100% fine‑stranded tinned copper for maximum conductivity and corrosion resistance.

How to Replace Golf Cart Battery Cables (DIY Guide)

Tools You’ll Need

• Socket set (usually 1/2″ or 9/16″ for battery terminals)

• Wire brush or terminal cleaner

• Dielectric grease or anti‑corrosion spray

• Safety glasses and gloves

Step‑by‑Step

1. Disconnect the main negative battery cable – always first.

2. Take clear photos of the existing cable routing (so you remember where each cable goes).

3. Remove one cable at a time – this prevents mixing up connections.

4. Clean each battery terminal with a wire brush before installing the new cable.

5. Install the new cable – tighten snugly (do not overtighten).

6. Apply dielectric grease to the terminal after tightening to prevent future corrosion.

7. Reconnect the main negative cable last.

8. Test – turn on the cart, check for proper operation.

Pro tip: Replace all cables at once. Mixing old and new cables leaves weak links in the system.

Common Mistakes to Avoid

Recommended 10L0L Battery Cables

10L0L offers 4 AWG and 2 AWG tinned copper battery cable sets for EZGO, Club Car, and Yamaha.

• 100% fine‑stranded tinned copper – maximum flexibility and corrosion resistance

• Pre‑terminated with heavy‑duty lugs – heat‑shrunk for a waterproof seal

• Direct fit – length and terminal orientation match your cart

• 2‑year warranty – peace of mind included

👉 Shop Golf Cart Battery Cables

Pair your new cables with a voltage reducer and solenoid for a complete electrical system refresh.

Frequently Asked Questions

Q: How often should golf cart battery cables be replaced?
A. Every 5‑7 years, or sooner if you see corrosion, cracks, or heat damage. If you upgrade to a high‑power controller or larger tires, replace them immediately.

Q: Can I use 2 AWG cables on a stock cart?
A. Yes – there’s no harm other than cost and slightly harder routing. But you won’t see a performance gain unless your current cables are undersized or damaged.

Q: Does upgrading cables increase speed?
A. Not directly. But it can restore lost power, improving acceleration and hill‑climbing ability – which may feel like increased speed.

Q: How do I prevent battery terminal corrosion?
A. Clean terminals regularly, apply dielectric grease, and avoid overfilling batteries (electrolyte spills cause corrosion).

Q: My cables are warm after driving. Is that normal?
A. Slightly warm is fine. If they’re hot enough to be uncomfortable to hold, there’s excessive resistance – check connections and consider upgrading gauge.

Final Thoughts

Battery cables are easy to ignore – until they leave you stranded. By learning the warning signs (corrosion, heat, voltage drop) and testing your system, you can catch problems early and replace cables before they cause bigger issues.

Your action plan:

1. Inspect your cables today – look for cracks, corrosion, or heat damage.

2. Test voltage drop with a multimeter (target <0.5V).

3. Replace any bad cables with tinned copper 4 AWG (or 2 AWG for heavy‑duty carts).

👉 Ready to upgrade? Shop 10L0L’s direct‑fit battery cable sets for EZGO, Club Car, and Yamaha.
