If you've ever popped the seat on your golf cart and stared at a tangle of batteries and cables, you're not alone. The electrical system looks complicated—but it's actually built around just three main components: the battery pack (the power source), the controller (the brain), and the motor (the muscle). Understand how these three work together, and you understand your whole cart.

This guide walks you through each part of the system, explains how they're wired, and shows you how to diagnose the most common electrical problems—without getting zapped.

Quick Answer: Your Electrical System in 30 Seconds

Part 1: The Big Picture — Three Components That Matter

Every electric golf cart has the same basic architecture:

Battery Pack → Controller → Motor

• The battery pack stores the energy. It's a group of batteries wired together to produce either 36V or 48V.

• The controller is the brain. It takes power from the batteries and, based on how far you press the accelerator, sends the right amount of power to the motor. A golf cart controller is the central component that manages this entire process.

• The motor turns that electrical energy into motion. It's the muscle that moves the wheels. A golf cart motor is what actually drives the cart forward.

Between the battery and the controller sits one more important part: the solenoid. Think of it as a heavy-duty switch that the controller uses to turn the motor on and off. A golf cart solenoid is the gatekeeper that allows high current to flow when you press the pedal.

That's it. Everything else—lights, USB chargers, horns—is an accessory that runs off a voltage reducer, which steps the main battery voltage down to 12V.

Once you understand this flow, diagnosing problems becomes a process of elimination: follow the power.

Part 2: Understanding Your Battery Pack — Voltage and Configuration

Golf carts run on either 36V or 48V systems. The voltage is determined by how the individual batteries are wired in series—meaning the positive terminal of one battery connects to the negative terminal of the next, adding their voltages together.

Common Configurations

How to Check Your Cart's Voltage

1. Count the batteries under the seat.

2. Read the voltage label on each battery (6V, 8V, or 12V).

3. Multiply: number of batteries × voltage per battery = total system voltage.

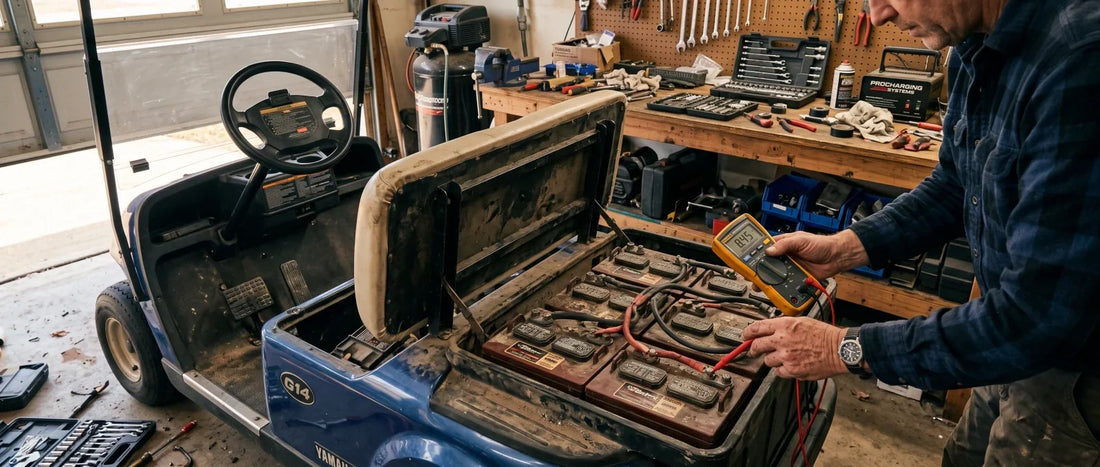

4. To confirm, use a multimeter across the main positive of the first battery and the main negative of the last battery—you should see either 36V or 48V.

If you're unsure about your battery setup or want to dig deeper into troubleshooting, read our guide on diagnosing battery drain issues before you start any work.

⚠️ Critical Warning: Never connect a 48V battery pack to a 36V controller. The controller will burn out instantly. Always match your battery voltage to your controller's rated input.

Part 3: The Controller — The Brain of Your Cart

The controller is a microprocessor that regulates power flow from the batteries to the motor. When you press the accelerator pedal, the controller receives a signal and adjusts the voltage and current sent to the motor—controlling your speed smoothly and efficiently.

If the controller fails, the cart won't move even if the batteries are fully charged. Common causes of controller failure include:

• Overheating from excessive load (hilly terrain with heavy passengers)

• Voltage spikes from loose or corroded connections

• Water damage from driving through deep puddles

Diagnostic tip: If your cart has power (lights work, solenoid clicks) but won't move, the controller is a possible culprit—but check the solenoid and cables first. Controllers are expensive to replace, so rule out cheaper problems before blaming the brain.

Part 4: The Solenoid — The Gatekeeper

The solenoid is a heavy-duty relay that acts as a gate between the batteries and the controller. When you turn the key on and press the pedal, the controller sends a small signal to the solenoid. That signal creates an electromagnetic field that pulls a movable contact closed, allowing high current to flow from the batteries to the controller.

That's the click you hear when you press the pedal.

The Most Common Solenoid Problem

You hear a click, but the cart doesn't move.

This usually means the solenoid coil is still working (that's the click), but the internal contacts are pitted, corroded, or burned—so current can't pass through. The gate opens, but the path is blocked.

Other common causes of the "click but no go" symptom:

• Weak batteries (low voltage means the solenoid can't fully engage)

• Corroded or loose cable connections

• A bad ground connection

Diagnostic tip: If you hear multiple rapid clicks when you press the pedal, you likely have a bad solenoid, a bad potentiometer (pedal sensor), or corroded wires somewhere. Start by cleaning all cable connections and checking battery voltage under load.

Part 5: Adding 12V Accessories — Voltage Reducers and Why You Need One

Here's where most beginners get into trouble.

Your cart's main battery pack runs at 36V or 48V. But almost every accessory you want to add—LED lights, USB chargers, horns, Bluetooth speakers—runs on 12V. You can't connect a 12V accessory directly to a 36V or 48V system. It will fry instantly.

The Wrong Way: Tapping a Single Battery

Some people connect a 12V accessory to just one battery in the pack. Yes, one battery gives you 12V. But this is a terrible idea:

• That single battery discharges faster than the others

• The entire pack becomes unbalanced

• Battery life is dramatically shortened

Never do this.

The Right Way: A Voltage Reducer (DC-DC Converter)

A voltage reducer for golf carts (also called a DC-DC converter) connects to the entire battery pack and steps the voltage down to a stable 12V output.

What to look for in a voltage reducer:

• Input range: Must accept 36V or 48V (some accept 36V–72V for flexibility)

• Output: Stable 12V

• Amperage: Add up the current draw of all your 12V accessories, then multiply by 1.5 for a safety margin. A 20A (240W) reducer handles basic lights plus a USB charger. A 30A (350W) reducer gives you room for lights, USB, horn, and a small stereo.

• Waterproof rating: If your cart lives outdoors, get an IP-rated waterproof reducer

Once you have a reducer installed, adding a USB charger for golf carts or an LED light kit for golf carts becomes straightforward—just connect them to the reducer's 12V output.

Part 6: Common Electrical Problems and How to Diagnose Them

90% of "won't start" problems come from the power delivery system—batteries, cables, and connections—not the controller or motor. Start your diagnosis there.

Problem 1: The Cart Has No Power at All

What to check (in order):

1. Battery voltage — Use a multimeter across the main positive and main negative. If it's below 36V (for a 36V system) or 48V (for a 48V system), charge the batteries.

2. Key switch — Make sure it's functioning. A multimeter can confirm continuity when turned on.

3. Run/Tow switch — On many carts, this switch must be in the "Run" position for the cart to operate.

4. Main fuse or circuit breaker — Check for a blown fuse or tripped breaker.

A battery meter for golf carts can help you monitor your battery health and catch problems before they leave you stranded.

Problem 2: Click But No Movement

What to check (in order):

1. Battery voltage under load — Batteries can show full voltage at rest but drop dramatically when you press the pedal. Test voltage while pressing the accelerator.

2. Cable connections — Look for corrosion, loose bolts, or frayed wires at the battery terminals, solenoid, and controller.

3. Solenoid — If it clicks but doesn't pass current, the internal contacts are likely burned.

4. Motor connections — Check that the cables from the controller to the motor are secure.

Problem 3: Lights or Accessories Don't Work

What to check:

1. Fuse — Most 12V accessory circuits have an inline fuse. Check it first.

2. Ground connection — A bad ground is the #1 cause of intermittent accessory failure.

3. Voltage reducer — If your reducer isn't getting input voltage from the battery pack, or if it's failed, your 12V accessories won't work. Test the reducer's input and output with a multimeter.

4. Wiring — Look for frayed insulation, loose connections, or signs of rodent chewing.

Part 7: Safety First — What NOT to Do

Electrical work on a golf cart is straightforward, but it can be dangerous if you don't respect the system. A 48V battery pack can deliver 150–300 amps—enough to weld metal and cause serious burns.

The Golden Rules:

1. Work in a ventilated area. Lead-acid batteries produce hydrogen gas when charging. A spark can ignite it.

2. Disconnect the negative cable first. Always remove the main negative cable from the battery pack before doing any work. Reconnect it last.

3. Wear safety glasses and insulated gloves. Remove metal jewelry—watches, rings, necklaces—before working near batteries.

4. Use a multimeter to confirm polarity. On old carts, wire colors can fade or be non-standard. Red isn't always positive. Measure before you connect.

5. Take photos before you disconnect anything. If you're replacing a solenoid, controller, or wiring harness, photograph the existing setup. You'll thank yourself when you're putting it back together.

6. Use the right cable gauge. A 36V or 48V system pulls serious current. Most carts use 4 AWG or 2 AWG cables between batteries and the controller. Undersized cables overheat and can start a fire.

Common Mistakes to Avoid

Frequently Asked Questions

How do I know if my cart is 36V or 48V?
Count the batteries and check their voltage labels. 6 × 6V = 36V. 6 × 8V or 4 × 12V = 48V. Or measure total pack voltage with a multimeter across the main positive and main negative terminals.

Can I add 12V accessories without a voltage reducer?
No—not safely. Connecting a 12V accessory directly to a 36V or 48V system will destroy it. Tapping a single battery is equally bad for your battery pack. Install a voltage reducer.

Why does my cart click but not move?
The solenoid is engaging (that's the click), but the internal contacts are likely burned or corroded, so current can't pass through. Check battery voltage, cable connections, and the solenoid itself.

Do I need special tools for electrical work?
A digital multimeter is essential—you can't diagnose electrical problems without one. Basic hand tools (wrenches, wire cutters, crimpers) and a torque wrench for battery terminals are also recommended.

Can I mix old and new batteries?
No. Old batteries have higher internal resistance and will drag down the new ones. Replace the entire battery pack at once for best performance and lifespan.

Final Thoughts

Understanding your golf cart's electrical system doesn't require an engineering degree. It requires knowing four things: where the power comes from (batteries), who controls it (controller), who switches it (solenoid), and how to power accessories safely (voltage reducer).

Start with the basics: know your voltage, keep your cables clean and tight, and never skip the voltage reducer when adding 12V accessories. If something stops working, follow the power—batteries first, then cables, then the solenoid, then the controller. Nine times out of ten, the problem is in the first two.

Get these fundamentals right, and you'll spend less time diagnosing problems and more time driving.
