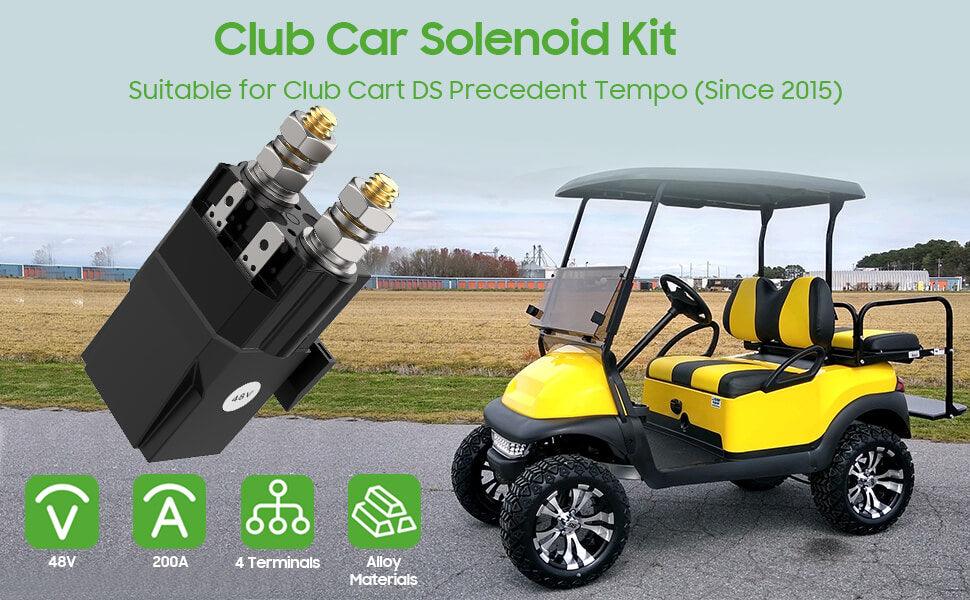

Principles and functions of the club car solenoid kit

by miiDi 23 Mar 2024 0 Comments

Golf Cart Solenoid Wiring DiagramThe club car solenoid kit plays a crucial role in the operation of electric golf carts manufactured by Club Car. Here are the principles and functions of the club car solenoid kit:

  1. Electromagnetic Principle: At its core, a solenoid is an electromagnetic switch. When an electric current passes through the coil of wire within the solenoid, it creates a magnetic field. This magnetic field attracts a ferrous metal core, known as the plunger or armature, causing it to move within the solenoid.

  2. Function as a Contactor: In the context of a golf cart, the solenoid serves as a contactor. It controls the flow of electricity from the batteries to the electric motor. When the solenoid is activated, it allows high-amperage power to flow from the battery pack to the motor, which drives the cart.

  3. Activation Mechanism: The club car solenoid kit typically includes components such as a coil, plunger, contacts, and housing. When the driver activates the accelerator pedal, it sends a signal to the controller, which in turn sends a voltage signal to the solenoid coil. This voltage energizes the coil, creating the magnetic field that pulls the plunger towards it.

  4. Main Contact Closure: As the plunger moves within the solenoid, it closes the main contacts. These contacts are heavy-duty switches that complete the circuit between the battery pack and the motor. When the contacts close, the high-amperage power flows through the solenoid, providing the necessary current to drive the electric motor and propel the golf cart forward.

  5. Safety Features: Solenoids often incorporate safety features to protect the electrical system and prevent damage in case of malfunction. For example, some solenoids include pre-charge resistors or diodes to suppress voltage spikes and protect the controller and other electronic components from damage.

  6. Interlock Functionality: In some models, solenoids also serve an interlock function to prevent the cart from moving when it's in maintenance mode or when the key is turned off. This ensures safety by immobilizing the cart when it's not intended to be in operation.

Overall, the club car solenoid kit is a critical component of the electric golf cart's propulsion system, responsible for controlling the flow of electricity from the battery pack to the motor. Its principles and functions are essential for the safe and efficient operation of the vehicle.
