Introduction: The Invisible Problem

Mechanical problems announce themselves. A worn brake shoe screeches. A sagging leaf spring makes the cart sit crooked. A torn drive belt leaves rubber dust on the engine. You can see them, hear them, touch them. But electrical problems don't work that way. The voltage that powers your cart is invisible. The resistance that steals that voltage is silent. The corroded terminal that's causing your lights to flicker looks almost identical to the clean one next to it.

When a cart won't move, or the lights won't turn on, or the battery gauge shows full but the cart dies after ten minutes, most owners guess. They replace the battery. Then the solenoid. Then the controller. They throw parts at the problem until something works — or until the cart sits unused in the garage because they've run out of both money and patience.

There's a better way. Electrical diagnosis is not guesswork. It's a sequence — a logical, step-by-step process that starts with the simplest, most common causes and works its way toward the more complex ones. This guide walks through that sequence. All you need is a multimeter and a methodical approach.

Part 1: Start With the Symptoms

Before you pick up a tool, identify what your cart is actually doing — or not doing. The symptom tells you where to start looking.

Find your symptom in the left column. Start at the step listed in the right column. Work through the sequence from that point.

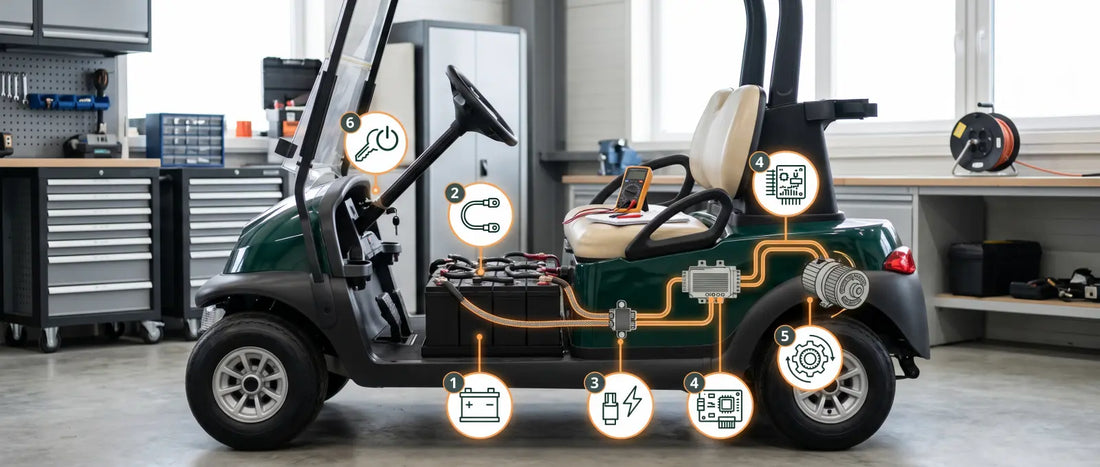

Part 2: Understand How the Electrical System Works

You don't need an engineering degree to diagnose a golf cart electrical problem. You just need to understand the one-way path electricity takes from the batteries to the motor. Here's the flow, in order:

1. Battery Pack (36V or 48V)
   The power source. Everything starts here.

2. Main Battery Cables
   The highways that carry current from the batteries to the rest of the cart.

3. Key Switch / Run-Tow Switch
   The on/off gate. On electric carts, the Run-Tow switch must be in RUN position.

4. Solenoid
   A heavy-duty switch that closes when you press the accelerator, connecting battery power to the controller.

5. Motor Controller
   The brain. It regulates how much power flows from the batteries to the motor based on your throttle input.

6. Electric Motor
   Converts electrical energy into motion. The most reliable part of the system — it should be the last thing you suspect.

The golden rule of electrical diagnosis: Start at the top of this list and work your way down. Most electrical problems live in the first three links — batteries, cables, or solenoid. If you skip those and jump straight to the controller, you'll replace an expensive part that was never the problem.

Part 3: Step-by-Step Diagnostic Process

Step 1: Check Battery Pack Voltage

The battery pack is the heart of the system. If it's not healthy, nothing downstream can work correctly.

How to test:

1. Let the batteries rest for at least 6 hours after charging. A battery fresh off the charger gives a falsely high reading.

2. Set your multimeter to DC voltage.

3. Place the black probe on the main negative terminal of the pack. Place the red probe on the main positive terminal.

4. Record the reading.

What's healthy:

If voltage is low: Charge fully and re-test after resting. If voltage remains low, the pack is worn.

If voltage is normal but the cart has problems: Go to Step 2.

Step 2: Inspect Battery Cables and Terminals

Battery cables are the most common failure point in the entire electrical system. They carry hundreds of amps, and any resistance — from corrosion, looseness, or undersized wire — steals power before it reaches the motor.

What to look for:

• Loose connections. Tug each cable. It should not move.

• Corrosion. White, green, or bluish powder on the terminals.

• Heat damage. After driving, carefully touch each cable near its terminals. A warm cable has high resistance.

• Cracked or swollen insulation. Signs of internal corrosion.

The fix for corroded terminals: Remove cables, clean posts and lugs with a wire brush until bright metal, reattach, and tighten. Apply dielectric grease to prevent future corrosion.

The fix for damaged cables: Replace any cable with melted insulation, discolored copper, or stiffness. Upgrading to 4 AWG battery cables reduces resistance and ensures full power delivery.

If all cables are clean and tight: Go to Step 3.

Step 3: Test the Solenoid

The solenoid is the heavy-duty switch that connects battery power to the controller. It's one of the most failure-prone components — and one of the easiest to test.

How to test:

1. Locate the solenoid — usually near the controller under the seat, with two large cables and two small wires.

2. Set your multimeter to DC voltage.

3. Place probes on the two large terminals.

4. Press the accelerator and watch the reading.

What the readings mean:

Important: A clicking solenoid is not necessarily a working solenoid. The click tells you the coil activates. It does not tell you the contacts pass current. Always do the voltage drop test.

If the solenoid tests fine: Go to Step 4.

Step 4: Check the Controller

The controller regulates power from the batteries to the motor. It rarely fails on its own — but when it does, the symptoms mimic battery, cable, and solenoid problems.

What to check:

1. Visual inspection. Look for a melted housing, burnt smell, or discolored terminals.

2. Cooling fins. If caked with mud or debris, the controller has been overheating.

3. Status LED. Count the flashes and compare to the manufacturer's error code chart if your controller has one.

4. Temperature. A controller too hot to touch after driving is either overworking or failing.

The fix for overheating: Clean the cooling fins. Ensure nothing blocks airflow around the controller. If it still overheats, or shows visible damage, it may need replacement. A replacement controller must match your cart's voltage and motor specs.

Important: The controller can only work correctly if it receives correct voltage. A controller that appears dead may be responding to a battery, cable, or solenoid problem upstream. Complete Steps 1-3 before concluding the controller is at fault.

If the controller checks out: Go to Step 5.

Step 5: Inspect the Motor

The electric motor is the most reliable component in the system. It should be the last thing you suspect.

What to check:

1. Carbon brushes. Worn brushes cause weak acceleration and reduced top speed. If your cart has gradually lost power over months, worn brushes are a likely cause.

2. Burning smell. A motor that smells burnt may have internal winding damage.

3. Bearing noise. A growling or grinding sound from the motor indicates bearing failure.

The fix: Worn brushes can be replaced. Internal winding damage or bearing failure requires professional motor rebuilding or replacement.

Step 6: Test for Parasitic Draw

If your battery drains while the cart sits unused, something is drawing power with the key off.

How to test:

1. Key off. All accessories off.

2. Disconnect the main negative battery cable.

3. Set your multimeter to DC amps.

4. Connect one probe to the negative battery post, the other to the disconnected cable.

5. Read the current draw.

What the readings mean:

The fix: Rewire the affected circuit to a switched power source, or install a manual kill switch to cut power completely when the cart is parked.

Step 7: Test the Voltage Reducer

If your 12V accessories — lights, stereo, USB chargers — are malfunctioning, test the voltage reducer.

How to test:

1. Set your multimeter to DC voltage.

2. Place probes on the reducer's 12V output terminals.

3. Turn on headlights to load the circuit.

What the readings mean:

Part 4: Diagnostic Decision Tree

If you prefer a visual path, follow this decision tree from top to bottom. Each question sends you either to a fix or to the next question.

[START] Cart has an electrical problem
     |
    V
Is the dashboard completely dark? No lights, no click?
     |
    +--- YES ---> Check battery pack voltage (Step 1)
     |                  |
     |                  +--- Voltage low? ---> Charge batteries. If still low, replace pack.
     |                  |
     |                  +--- Voltage normal? ---> Check main battery cables (Step 2)
     |                                             |
     |                                             +--- Loose or corroded? ---> Clean terminals. Replace damaged cables.
     |                                             |
     |                                             +--- Cables fine? ---> Check key switch and Run/Tow switch.
     |
    V
Do you hear a click when pressing the accelerator?
     |
    +--- NO ---> Test solenoid activation (Step 3)
     |                 |
     |                 +--- No voltage to solenoid coil? ---> Check key switch, pedal microswitch, wiring.
     |                 |
     |                 +--- Voltage present but no click? ---> Replace solenoid.
     |
    +--- YES, but cart won't move ---> Test solenoid voltage drop (Step 3)
     |                                        |
     |                                        +--- Voltage drops to near 0V? ---> Solenoid is fine. Go to controller check.
     |                                        |
     |                                        +--- Voltage stays high? ---> Replace solenoid. Contacts are burnt.
     |
    V
Does the controller show error codes or visible damage?
     |
    +--- YES ---> Note error code. Clean cooling fins. If damaged, replace controller (Step 4).
     |
    +--- NO ---> Test for parasitic draw (Step 6)
     |
    V
Does the motor run but cart feels weak?
     |
    +--- YES ---> Check battery voltage under load (Step 1). Check cables (Step 2). Inspect motor brushes (Step 5).
     |
    V
Is the problem only with lights or accessories?
     |
    +--- YES ---> Test voltage reducer output (Step 7).
     |
    V
[DONE] Problem identified. Apply the fix.

Part 5: Most Common Electrical Problems

Here are the most frequent electrical failures on a golf cart, in order of how often they occur:

1. Corroded or loose battery terminals. The number one cause of every electrical symptom. Clean them first, before doing anything else.

2. Worn battery cables. Internal corrosion invisible from the outside. If cables are over five years old or feel stiff and warm after driving, replace them.

3. Burnt solenoid contacts. The solenoid clicks, but no current passes. Test with the voltage drop method in Step 3.

4. Failing voltage reducer. Causes dim lights, flickering accessories, or complete 12V power loss. Test under load.

5. Controller thermal shutdown. Caused by debris buildup on cooling fins. Clean annually. If shutdowns persist, the controller may be failing.

6. Faulty key switch or pedal microswitch. Intermittent starting problems that come and go. Test for continuity.

7. Worn motor brushes. Gradual power loss over months. The motor runs but produces less torque.

Part 6: Recommended Replacement Parts

Part 7: Related Repair Guides

• Why Does My Golf Cart Battery Die So Fast? — Deep dive into battery testing and parasitic draw

• Golf Cart Solenoid: Symptoms, Testing & Replacement — Complete solenoid diagnostic guide

• Why Are My Golf Cart Headlights So Dim? — Voltage drop diagnosis applied to lighting

Frequently Asked Questions

Q: What is the most common electrical problem in a golf cart?
A: Corroded or loose battery terminals. Clean and tighten every terminal before replacing any component. A surprising number of electrical problems are solved with a wire brush and five minutes.

Q: How do I know if my golf cart solenoid is bad?
A: Test the voltage drop across the large terminals when the accelerator is pressed. A healthy solenoid drops to near 0V. If the voltage stays high — near full pack voltage — the contacts are burnt and the solenoid needs replacement, even if it clicks.

Q: Can bad battery cables cause power loss?
A: Yes. Corroded, loose, or undersized cables create resistance that steals voltage before it reaches the motor. This causes slow acceleration, reduced top speed, and cables that feel warm after driving.

Q: Why do my lights work but my golf cart won't move?
A: The lights run on a separate 12V circuit, often powered by a voltage reducer or a single battery. If the lights work but the cart won't drive, the problem is in the high-current path — batteries, main cables, solenoid, or controller — not in the 12V system.

Q: Can a controller fail without warning?
A: Sometimes. More often, a failing controller gives warning signs — the cart slows after extended driving, acceleration feels inconsistent, or the controller housing gets unusually hot. If the controller fails suddenly, check for water ingress, a short circuit, or a voltage surge from a faulty solenoid.

Final Verdict: Diagnose First, Replace Second

Electrical problems feel overwhelming because electricity is invisible. But the diagnostic process is not. It's a sequence — total voltage, then individual batteries, then cables, then components — and if you follow it in order, you will find the problem.

A multimeter costs less than the cheapest electrical component you might replace unnecessarily. A systematic approach costs only your time. Together, they turn an invisible problem into a solvable one.

Don't guess. Don't throw parts at the problem. Follow the sequence. Fix it once, fix it right.
