Why Does My Golf Cart Battery Gauge Show the Wrong Charge Level?
Introduction: When the Meter Lies

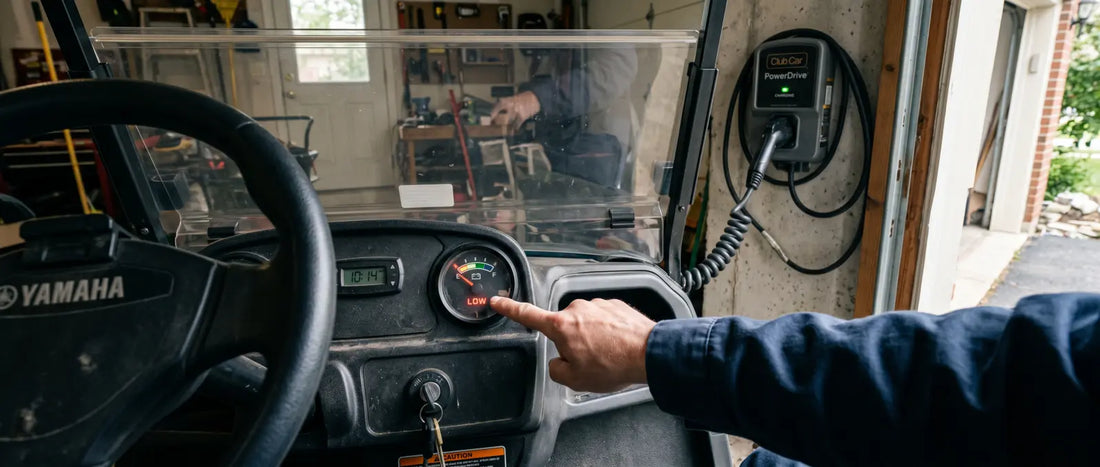

You just unplugged the charger. The cart should be ready to go. But the battery gauge tells a different story — half-full, a single blinking bar, or completely dead. Then you drive for ten minutes, and the gauge hasn't moved. Or it drops two bars when you accelerate, then climbs back up when you stop.
A battery gauge that shows the wrong charge level is one of the most common electrical complaints — and one of the most misdiagnosed. Many owners replace the batteries, only to find the gauge still reads wrong. Others replace the gauge, only to discover the old one was fine. The gauge is the endpoint of a chain that includes the batteries, cables, connections, and voltage source. A problem anywhere in that chain produces an inaccurate reading.
Quick Answer: Why Is My Battery Gauge Reading Wrong?
| Cause | What You'll See | The Fix |
|---|---|---|
| Wrong gauge for your battery type | Lithium batteries show "full" then suddenly drop | Install a gauge matched to your battery chemistry |
| Corroded or loose battery cables | Gauge fluctuates; reads differently after bumps | Clean terminals; replace corroded cables |
| Reading at the wrong time | Gauge shows low after charging, then recovers | Wait 6-12 hours after charging before reading |
| Single weak battery in the pack | Gauge drops sharply under acceleration | Load-test each battery; replace weak ones |
| Gauge wired to a tapped battery | Gauge only reads one battery, not full pack | Rewire to read full pack voltage |
| The gauge itself has failed | Gauge shows full or empty constantly | Replace with a digital voltmeter |
Key principle: A battery gauge is a voltmeter. If the voltage reaching it is wrong — because of a bad connection, surface charge, or incorrect wiring — the display will be wrong. Verify the voltage at the gauge before replacing it.
Part 1: Wrong Gauge for Your Battery Chemistry
Lead-acid and lithium batteries have fundamentally different discharge curves. Lead-acid voltage drops steadily as it discharges. Lithium stays nearly flat until near depletion, then drops sharply. A lead-acid gauge on a lithium pack shows "full" for hours, then "empty" with almost no warning.
How to check: Identify your battery type. If you upgraded to lithium but kept the original gauge, it's the wrong type. Lithium batteries need a lithium-compatible meter that tracks their actual charge curve.
Part 2: Corroded or Loose Battery Cables
Corrosion on battery terminals adds resistance to the circuit. The gauge sees a lower voltage than the batteries are actually producing, and displays a lower charge level. This is why a gauge that reads "half" after a full charge often reads correctly after the terminals are cleaned.
What you'll see: The gauge fluctuates — sometimes normal, sometimes low, sometimes dropping on bumps. These inconsistencies point to a connection problem, not a gauge problem.
How to check: Inspect every battery terminal for white, green, or bluish corrosion. Check that all connections are tight — a cable should not wiggle. If the gauge is wired to a single battery, check those specific connections.
The fix: Remove cables, clean posts and lugs with a wire brush, reattach, and tighten. Apply dielectric grease to slow future corrosion. Replace cables that are stiff, cracked, or discolored with new battery cables.
Part 3: Reading at the Wrong Time
A battery fresh off the charger carries a "surface charge" — a temporarily elevated voltage. It may read 13.0V or higher, making the gauge show "full" even if actual capacity is lower. Conversely, voltage sag after heavy load produces a temporarily depressed reading.
How to check: After charging, let the batteries rest 6-12 hours before reading. The rest period allows the surface charge to dissipate. The voltage after resting is the true state of charge.
The fix: No parts needed. Change your reading habits. For real-time monitoring while driving, a digital voltmeter gauge shows actual voltage — more useful than a bouncing bar graph.
Part 4: Single Weak Battery in the Pack
A golf cart battery pack is a series circuit. One weak battery drags down the total voltage. The gauge correctly displays the reduced voltage — but the problem is the battery, not the gauge.
How to check: After a full charge and rest, measure each battery individually. A healthy 8V reads 8.4-8.5V; a 12V reads 12.6-12.7V. Any battery more than 0.3V lower than the others is suspect. Then load-test: measure each battery while pressing the accelerator. A weak one drops sharply. For detailed testing, see our battery diagnostic guide .
The fix: Replace the weak battery. If the pack is over 4 years old and multiple batteries are weak, replace the full pack.
Part 5: Gauge Wired to a Tapped Battery
Some older carts have the gauge wired to a single battery rather than the full pack — a factory cost-saving measure that produces inherently inaccurate readings. The tapped battery discharges faster and sags more under load.
What you'll see: The gauge drops dramatically under acceleration and recovers at rest. It may read consistently low even after a full charge.
How to check: Trace the wires from the gauge. If they lead to individual battery posts rather than the main pack terminals, the gauge is tapped.
The fix: Rewire to full pack voltage — positive to main positive, negative to main negative, with an inline fuse. If your gauge is 12V-rated and your pack is 36V or 48V, install a gauge rated for your pack voltage.
Part 6: The Gauge Itself Has Failed
Analog gauges wear out mechanically — springs lose tension, pivots develop friction. Digital gauges can fail from internal component degradation.
What you'll see: The gauge shows a constant reading that never changes, or jumps erratically with no pattern.
How to check: Measure voltage at the gauge input with a multimeter. If the voltage is correct but the display is wrong, the gauge has failed. If the voltage at the gauge is also wrong, the problem is upstream.
The fix: Replace with a digital voltmeter gauge . A numerical voltage reading is more precise than a bar graph. For carts with multiple accessories, a multifunction meter combines voltage, state of charge, and temperature in one unit.
Common Mistakes to Avoid
Mistake 1: Replacing the gauge before checking connections. A new gauge on corroded terminals will be just as inaccurate. Verify clean voltage at the gauge first.
Mistake 2: Using a lead-acid gauge with lithium batteries. The discharge curves are completely different. Install a lithium-specific gauge .
Mistake 3: Reading state of charge immediately after charging or driving. Surface charge inflates readings; voltage sag depresses them. Let batteries rest.
Mistake 4: Trusting a factory bar-graph gauge for precision. Most are approximate indicators. A digital voltmeter gives actual voltage — far more useful for monitoring battery health.
Mistake 5: Ignoring a consistently wrong gauge. Over-discharging batteries permanently reduces their lifespan. Fix the gauge before it damages your battery investment.
Frequently Asked Questions
Q: Why does my battery gauge drop when I accelerate?
A: This is voltage sag — normal, but more pronounced as batteries age. If it drops sharply and recovers quickly, the batteries are aging. If it stays low, there may be a weak battery in the pack.
Q: Can I use the same gauge for lead-acid and lithium?
A: No. The voltage curves are fundamentally different. Use a gauge matched to your battery chemistry or one with selectable settings.
Q: How do I know if my battery gauge is bad?
A: Measure voltage at the gauge input. If voltage is correct but display is wrong, the gauge is bad. If voltage at the gauge is also wrong, the problem is in the wiring or batteries.
Q: What's the best type of battery gauge?
A: A digital voltmeter showing actual voltage. It provides real-time data you can interpret at rest versus under load. For state-of-charge percentage, choose a meter designed for your battery type .
Q: Should I wire my gauge to the full pack or a single battery?
A: Always to the full pack — main positive and main negative. Wiring to a single battery produces inaccurate readings and accelerates pack imbalance.
Related Guides
-
Why Does My Golf Cart Battery Die So Fast? — Diagnose battery drain and charging issues
-
36V vs 48V Golf Cart: What's the Real Difference? — Understand your cart's electrical system
-
Why Does My Golf Cart Smell Like Burning Plastic? — Identify electrical overheating
-
How to Store a Golf Cart Outside — Battery care for outdoor-stored carts
Final Verdict: The Gauge Is a Messenger — Make Sure It's Getting the Right Message
A wrong battery gauge reading is almost never random. It's a specific symptom with a specific cause — a connection problem, a chemistry mismatch, surface charge, a weak battery, or a failed gauge. Before replacing anything, verify that clean, stable voltage is reaching the gauge.
| Your Situation | Your Next Step |
|---|---|
| Gauge shows full, then suddenly empty | Lithium batteries need a lithium-compatible gauge |
| Gauge fluctuates or reads low after charging | Clean battery terminals ; check for loose connections |
| Gauge drops sharply under acceleration | Load-test each battery |
| Gauge wired to a single battery | Rewire to full pack voltage |
| Voltage at gauge is correct, display is wrong | Replace the gauge |
Your battery gauge is the only window you have into what your batteries are doing. Make sure it's showing you the truth.
