Introduction: The Squeak That Won't Go Away

Your brakes are making noise. Or the pedal travels further than it used to before the cart starts slowing. Or the cart pulls to one side when you stop. You know something needs attention, but you're not sure whether a simple adjustment will fix it or whether it's time to spend money on new shoes.

Make the wrong call in one direction, and you waste money replacing parts that still have life in them. Make the wrong call in the other, and you're driving with brakes that could fail when you need them most. The difference between "adjust" and "replace" comes down to a few clear, measurable signs. This guide gives you those signs.

Quick Answer: Adjust or Replace?

The golden rule: If the friction material is thicker than 1/8 inch and the surface is not glazed, contaminated, or unevenly worn, adjust. If any of those conditions are not met, replace.

When Adjusting Is Enough

Brake adjustment compensates for normal wear. As the friction material slowly wears thinner, the gap between the shoes and the drum grows. The pedal travels further to push the shoes against the drum. Adjusting the star wheel at each wheel moves the shoes closer to the drum, restoring normal pedal travel and even braking.

Adjust if:

• The shoes have at least 1/8 inch of friction material remaining

• The surface is matte and even, not shiny or glazed

• The shoes are wearing evenly — same thickness from top to bottom and side to side

• The pedal feels low but the brakes still stop the cart effectively once engaged

• The cart pulls to one side, and you've confirmed the shoes are evenly thick on both sides

How often should you adjust? Check adjustment every 6 months. Most carts need a small adjustment once or twice a year with normal use. Carts used on hilly terrain or with heavy loads may need adjustment more often.

For a complete walkthrough of the adjustment procedure, see our brake maintenance guide.

When Replacement Is Required

The Friction Material Is Too Thin

This is the most straightforward decision. Brake shoes have a minimum service thickness of 1/8 inch. Below that, the friction material is too thin to absorb and dissipate the heat of braking. The shoes can overheat, glaze, or wear through to the metal backing plate.

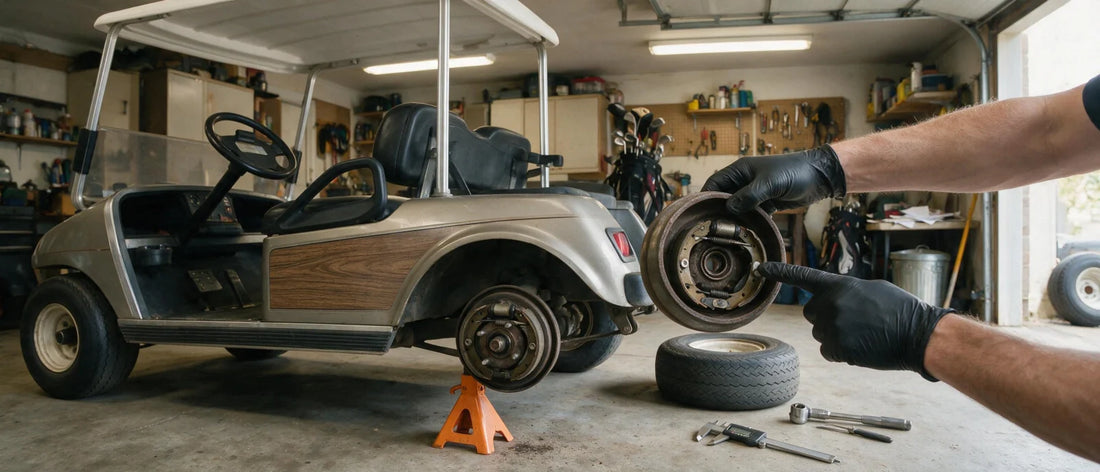

How to check: Remove the wheel and brake drum. Measure the friction material thickness at several points. A ruler or caliper works. If any measurement is below 1/8 inch, replace both shoes on that axle.

The Surface Is Glazed

Glazed brake shoes have a hard, shiny, glass-like surface. This happens when the shoes overheat — from dragging, heavy use, or riding the brakes down hills. A glazed surface has very little friction. The brakes feel hard and unresponsive even though the shoes are thick.

How to check: Look at the shoe surface under good light. A healthy shoe has a matte, almost suede-like texture. A glazed shoe reflects light and looks polished. If the glazing is light and the shoes are thick, you can sometimes scuff the surface with 80-grit sandpaper to restore friction. If the glazing is deep or the shoes are already worn, replace them.

The Shoes Are Worn Unevenly

Brake shoes should wear evenly across their entire surface. A shoe that is wedge-shaped — thin on one edge and thick on the other — indicates a mechanical problem: a bent backing plate, a misadjusted anchor pin, or a seized adjuster. Uneven wear reduces the contact area between the shoe and the drum, reducing braking power.

How to check: Measure the thickness at both edges and the center of each shoe. Differences of more than 1/16 inch indicate uneven wear. Replace the shoes and investigate the cause before installing new ones.

Metal-on-Metal Contact

This is the most urgent situation. When the friction material wears completely through, the steel backing plate contacts the cast iron drum. The sound is unmistakable — a harsh grinding or scraping that changes with pedal pressure. Every rotation of the wheel under braking scores the drum surface.

How to check: The sound alone is usually enough to confirm. Remove the drum and inspect the shoe surface — if you see steel instead of friction material, the shoes are done. Also inspect the drum. Light scoring can sometimes be resurfaced. Deep grooves mean the drum must be replaced along with the shoes. For replacement brake shoes and drums , match the parts to your cart's make and model.

Contamination

Brake shoes rely on friction to work. Any substance that reduces friction — grease from an over-lubricated pivot point, brake fluid from a leaking wheel cylinder, oil from a failed axle seal — contaminates the friction material. The shoes may grab unpredictably, produce uneven braking, or simply lose stopping power.

How to check: Look for dark, wet stains on the friction material. A greasy film that you can feel with your finger confirms contamination. Contaminated shoes cannot be cleaned effectively. The friction material is porous, and the contaminant penetrates beyond the surface. Replace the shoes and fix the source of the contamination before installing new ones.

How to Adjust Brake Shoes (Quick Overview)

1. Lift the rear of the cart and support it on jack stands.

2. Locate the rubber adjustment plug on the back of each brake backing plate. Remove it.

3. Insert a brake adjustment tool or flat-blade screwdriver and engage the star wheel.

4. Turn the adjuster to expand the shoes until you feel light drag when spinning the wheel by hand.

5. Back off slightly until the wheel spins freely with only the faintest hint of contact.

6. Adjust both sides equally. The brake pedal should feel firm within the first inch or two of travel.

For full step-by-step guidance, see our brake maintenance guide .

Common Mistakes to Avoid

Mistake 1: Replacing shoes that still have life because they're squeaking.
A squeak can be caused by brake dust, light glazing, or vibration — not necessarily worn-out shoes. Inspect the thickness before deciding. If the shoes are thick and the squeak is light, scuffing the surface and cleaning the drum often resolves it.

Mistake 2: Adjusting shoes that are below the service limit.
Adjusting worn shoes closer to the drum restores pedal feel temporarily, but the thin friction material will overheat and wear through quickly. You're buying a few weeks of use at the cost of potentially damaging the drums.

Mistake 3: Replacing only one side.
Brake shoes must be replaced in axle sets — both sides. A new shoe on one side and a worn shoe on the other creates uneven braking and can cause the cart to pull dangerously.

Mistake 4: Ignoring the drums during a shoe replacement.
New shoes on a scored or grooved drum will wear unevenly and never achieve full braking power. Inspect the drum surface. If it's not smooth and even, replace the drum with the shoes.

Mistake 5: Not replacing the hardware when replacing shoes.
The return springs, hold-down pins, and adjusters have the same number of heat cycles as the shoes. Old hardware can fail after a shoe replacement, requiring you to take everything apart again. A complete hardware kit is inexpensive and replaces everything at once.

Frequently Asked Questions

Q: How do I know if my brake shoes need replacing or just adjusting?
A: Remove the drum and measure the friction material. If it's thicker than 1/8 inch and the surface is not glazed, contaminated, or uneven, adjust. If it's below 1/8 inch, or the surface is compromised, replace.

Q: Can I replace just one brake shoe?
A: No. Replace shoes in axle sets — both sides of the same axle. A new shoe paired with a worn shoe on the other side creates uneven braking.

Q: How long do golf cart brake shoes last?
A: With normal use on paved roads, brake shoes typically last 3-5 years. Carts used on hills, with heavy loads, or in dusty conditions may need replacement every 1-2 years.

Q: What happens if I keep driving with worn brake shoes?
A: Worn shoes reduce stopping power and increase stopping distance. If the friction material wears through completely, the metal backing plate grinds against the drum, destroying it. A shoe replacement that costs $30-$60 becomes a drum-and-shoe replacement that costs significantly more.

Q: Should I replace the drums when I replace the shoes?
A: Not automatically. If the drum surface is smooth and even, it can be reused. If it's grooved, scored, or has a visible wear ridge, replace it. New shoes on a damaged drum wear out faster and never achieve full braking power.

Related Guides

• Golf Cart Brake Maintenance Guide: When to Adjust, Replace Pads & Upgrade Cables — Complete brake service walkthrough

• Golf Cart Noise Issues: Why Your Cart Is Making Strange Sounds — Diagnose brake squeals, suspension clunks, and more

• Golf Cart Electrical vs Mechanical Problems: How to Tell the Difference — Determine which system needs attention first

• Why Does My Golf Cart Pull to One Side? Common Causes & Easy Fixes — Diagnose and fix pulling, including brake-related causes

Final Verdict: Measure Before You Decide

The difference between "adjust" and "replace" is a measurement, not a guess. Pull the drum. Look at the shoes. If the friction material is thicker than 1/8 inch and the surface is in good condition, adjust them. If not, replace them. The ten minutes it takes to pull the drums and measure is time well spent — it's the difference between wasting money on unnecessary parts and gambling with brakes that are past their limit.

Don't guess. Pull the drum. Measure the shoe. Then decide.
