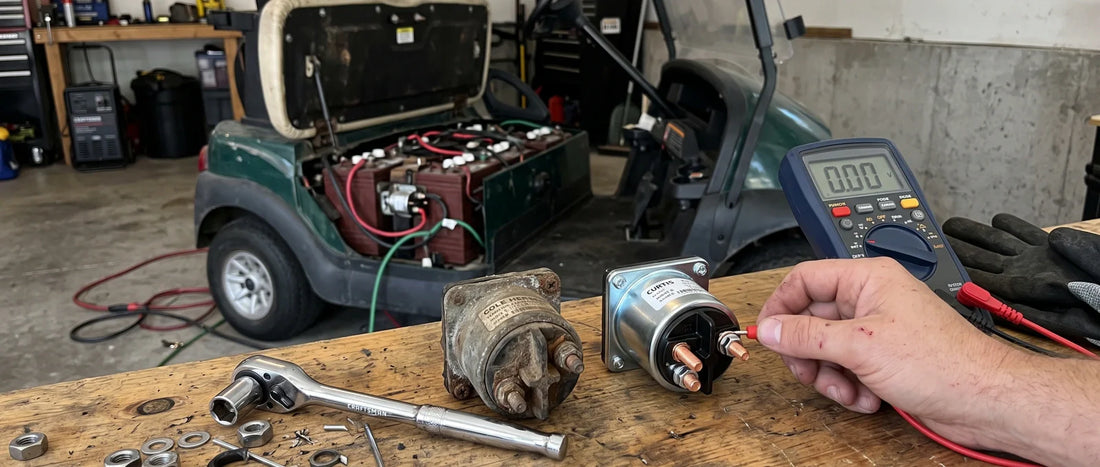

Introduction: The Solenoid That Burned Up on Its First Day

You bought a new solenoid. You bolted it in, connected the wires, and turned the key. The cart moved. It worked. Then, three presses of the accelerator later, it didn't. The new solenoid — the one you just spent $30 on — was dead. Not because it was defective. Because one small installation mistake sent the wrong voltage through it and burned the coil instantly.

A golf cart solenoid is not a complicated part. It's a heavy-duty switch with four terminals. But installing one without understanding what each terminal does, what voltage it expects, and what mistakes will destroy it is a gamble. This guide covers the entire process — what to do before you touch a single wire, the step-by-step installation sequence, the mistakes that kill solenoids, and how to verify your work before you drive.

Quick Answer: What Makes a Solenoid Installation Go Wrong?

Before You Touch Anything: Two Safety Rules

Rule 1: Disconnect the Battery Negative

Before you touch a single wire on the solenoid, disconnect the main negative battery cable from the battery pack. This de-energizes the entire system. Working on a live solenoid means one accidental touch of a wrench between a hot terminal and the frame sends a 48-volt arc through the tool — and through you.

Rule 2: Match the Voltage

A solenoid's coil is designed for a specific voltage. A 36-volt solenoid installed in a 48-volt cart will have its coil burn out — often within the first few presses of the accelerator. A 48-volt solenoid in a 36-volt cart may never engage reliably because the coil isn't receiving enough voltage to pull the contacts closed. Confirm your cart's system voltage before ordering the solenoid. The voltage rating is printed on the solenoid housing or on the product listing. If you're unsure of your cart's voltage, count the batteries: six 6-volt batteries = 36V. Six 8-volt batteries or four 12-volt batteries = 48V.

Tools You'll Need

Step-by-Step Installation

Step 1: Take a Photo of the Old Wiring

Before you disconnect anything, take a clear photo of the solenoid with all wires attached. Make sure the photo shows which wire goes to which terminal. This is your reference. If you get confused during reinstallation, this photo is worth more than any wiring diagram.

Step 2: Disconnect the Battery

Disconnect the main negative battery cable from the battery pack. This is not optional. Place the disconnected cable where it cannot accidentally spring back and touch the terminal.

Step 3: Remove the Old Solenoid

There are two types of connections to remove: the large cables on the big terminals, and the small wires on the small terminals. Loosen the nuts on the large terminals first, then the small ones. Remove the mounting bolts that hold the solenoid to the frame. Lift the old solenoid out.

While the old solenoid is off, inspect the cable lugs and terminals. If they're corroded, clean them with a wire brush until the metal is bright. A new solenoid on corroded cables will have the same resistance problems as the old one.

Step 4: Mount the New Solenoid

Bolt the new solenoid to the frame in the same orientation as the old one. The large terminals should face the same direction they did before. Tighten the mounting bolts firmly. The solenoid should not move when you tug on it.

Step 5: Connect the Wires

Refer to your photo. Connect the large cables to the large terminals first, then the small wires to the small terminals. The order matters: large cables carry the motor current and must be tight and secure. Small wires carry the activation signal and are lower current, but a loose small wire means the solenoid never activates.

Tighten every nut firmly. After tightening, tug each wire gently. A properly connected wire should not move or rotate on the terminal.

Step 6: Reconnect the Battery and Test

Reconnect the main negative battery cable. Before driving, test the solenoid with a voltage drop test: set your multimeter to DC voltage, place the probes on the two large terminals, and press the accelerator. A healthy new solenoid should show near 0 volts across the large terminals when engaged. If the voltage stays high, the contacts are not closing properly — recheck the small wire connections.

If the test passes, take a short test drive. Accelerate gently at first, then normally. Listen for any clicking or chattering from the solenoid. The cart should accelerate smoothly with no hesitation.

The Three Most Common Installation Mistakes

Mistake 1: Installing the Wrong Voltage Solenoid

This is the mistake that kills more new solenoids than any other. A 36-volt solenoid installed on a 48-volt cart will have its internal coil burn out, often within the first few presses of the accelerator. The solenoid may work once or twice before it fails, which makes the mistake confusing — it seemed to work, then it didn't.

How to avoid it: Confirm your cart's system voltage before ordering. The voltage is printed on the old solenoid's housing. If the label is unreadable, count your batteries. Never guess.

Mistake 2: Reversing the Large and Small Wires

The solenoid has two distinct circuits. The large terminals carry full battery pack current to the motor — hundreds of amps. The small terminals carry a low-current activation signal from the key switch and pedal microswitch. Reversing these — connecting the heavy motor cables to the small terminals, or the activation wires to the large terminals — results in either no operation or catastrophic failure.

How to avoid it: Your pre-installation photo is the best defense. The large cables are physically thicker and connect to the large terminals. The small wires are thinner and connect to the small terminals. If the photo and the physical wire size both agree, you're connecting correctly.

Mistake 3: Loose Terminal Connections

A terminal nut that feels snug during installation can loosen after the first few rides from vibration and thermal cycling. A loose connection creates resistance, and resistance creates heat. A solenoid terminal that overheats can melt the housing, damage the internal contacts, or cause intermittent operation that leaves you stranded.

How to avoid it: Tighten every terminal nut firmly. After tightening, tug each wire. After the first three rides, recheck every connection. It takes two minutes and can save a solenoid.

How to Verify the Installation Was Done Correctly

Voltage Drop Test

Set your multimeter to DC voltage. Place the probes on the two large terminals of the solenoid. Press the accelerator. A properly installed, healthy solenoid should show near 0 volts — typically 0.1V or less. If the reading is higher than 0.5V, the contacts have high resistance. Check that the large terminal connections are clean and tight. If they are and the voltage drop remains high, the solenoid may be defective.

Road Test

Drive the cart under normal conditions. Accelerate from a stop, climb a small hill if available, and maintain cruising speed. The cart should accelerate smoothly with no hesitation, no chattering sounds from the solenoid area, and no burning smells. If the solenoid chatters — a rapid clicking sound — the activation circuit has a problem: check the small wire connections and the key switch circuit.

Re-Tighten After Break-In

After the first three to five rides, recheck the tightness of every terminal nut and the mounting bolts. Vibration and heat cycling can loosen initially tight connections. This two-minute check is the difference between a solenoid that lasts for years and one that fails in weeks.

Frequently Asked Questions

Q: How do I know if my solenoid is 36V or 48V?
A: The voltage rating is printed on the solenoid housing. If the label is worn off, check your cart's system voltage by counting the batteries. The replacement solenoid must match that voltage exactly.

Q: Can I install a solenoid without disconnecting the battery?
A: You should not. Working on a live solenoid risks an accidental short circuit, which can cause severe burns, fire, or damage to the controller. Disconnecting the negative battery cable takes 30 seconds and makes the entire system safe to work on.

Q: Why does my new solenoid click but the cart won't move?
A: The click means the activation circuit is working — the key switch, pedal microswitch, and coil are all functional. If the cart doesn't move, the large contacts inside the solenoid may not be passing current. This could be a defective solenoid, or the large terminal connections may be loose or corroded. Perform the voltage drop test to check.

Q: Do I need to replace the cables when I replace the solenoid?
A: Not automatically, but inspect the cable lugs while the old solenoid is off. If they're corroded, clean them. If the cable insulation is stiff, cracked, or discolored, replace the cables. New battery cables on a new solenoid ensure the entire current path is in good condition.

Related Guides

• How to Diagnose a Golf Cart Electrical Problem Step-by-Step — Complete diagnostic sequence including solenoid testing

• Golf Cart Power Loss Explained: Voltage Drop, Resistance & What Causes It — Understand why solenoid contacts burn and how resistance steals power

• Golf Cart Electrical vs Mechanical Problems: How to Tell the Difference — Determine whether the issue is electrical or mechanical

• Why Does My Golf Cart Battery Die So Fast? — Diagnose battery drain and electrical issues

Final Verdict: Take Your Time, Follow the Steps, Avoid the Mistakes

A solenoid replacement is one of the most straightforward electrical repairs on a golf cart — four terminals, two mounting bolts, and about 20 minutes of work. The mistakes that turn a simple job into a frustrating one are almost always the same: wrong voltage, wrong wiring, loose connections, or forgetting to disconnect the battery.

Take the photo before you start. Disconnect the negative. Match the voltage. Tighten every connection. Test before you drive. Those five habits are the difference between a solenoid that lasts five years and one that burns up on its first day.

A solenoid is a simple part. Install it the right way, and you'll never think about it again.
